Incidence, diagnosis and management of tubal and nontubal ectopic pregnancies: a review

Article metrics

Abstract

Background

Ectopic pregnancy is a potentially life-threatening condition occurring in 1-2 % of all pregnancies. The most common ectopic implantation site is the fallopian tube, though 10 % of ectopic pregnancies implant in the cervix, ovary, myometrium, interstitial portion of the fallopian tube, abdominal cavity or within a cesarean section scar.

Findings

Diagnosis involves a combination of clinical symptoms, serology, and ultrasound. Medical management is a safe and effective option in most clinically stable patients. Patients who have failed medical management, are ineligible, or present with ruptured ectopic pregnancy or heterotopic pregnancy are most often managed with excision by laparoscopy or, less commonly, laparotomy. Management of nontubal ectopic pregnancies may involve medical or surgical treatment, or a combination, as dictated by ectopic pregnancy location and the patient's clinical stability. Following tubal ectopic pregnancy, the rate of subsequent intrauterine pregnancy is high and independent of treatment modality.

Conclusion

This review describes the incidence, risk factors, diagnosis, and management of tubal and non-tubal ectopic and heterotopic pregnancies, and reviews the existing data regarding recurrence and future fertility.

Findings

An ectopic pregnancy (EP) refers to the implantation of an embryo outside of the uterus. Due to advances in laboratory testing, transvaginal ultrasound, chemotherapy and laparoscopy, the evaluation, diagnosis and management of EP has rapidly evolved. In parallel, maternal mortality has declined, from 3.5 of 10,000 pregnancies in 1970 to 2.6 of 10,000 in 1992 [1].

The most common EP location is in the fallopian tube, predominantly the ampullary region of the fallopian tube. Implantation outside the fallopian tube—in the cervix, ovary, myometrium, abdominal cavity, interstitial (i.e., intramuscular/proximal) portion of the fallopian tube or coincidentally with an intrauterine pregnancy—occurs in less than 10 % of EPs. Heterotopic pregnancy (HP) refers to the coexistence of an intrauterine pregnancy with an EP in any of these locations. ‘Cornual’ pregnancies are those implanted in a horn of an anomalous uterus (i.e., unicornuate, bicornuate, didelphys or septate uteri); these do not uniformly require intervention and will not be included in this review [24].

This review will describe the incidence, risk factors, diagnosis and management of women with tubal and nontubal EPs, as well as review the existing literature regarding their future fertility.

Review

Incidence

The overall rate of EP is 1–2 % in the general population, and 2–5 % among patients who have utilized assisted reproductive technology (ART) [5, 6]. Although the overall mortality has decreased over time, ruptured EPs still account for up to 6 % of all maternal deaths; a review of mortality in ART-associated EPs similarly reported a mortality rate of 31.9 deaths per 100,000 pregnancies [5, 7].

Nontubal EPs are pregnancies that implant at sites other than the fallopian tube. These pregnancies account for less than 10 % of all EPs, though their overall incidence has been increasing in recent years [5]. Furthermore, nontubal EPs contribute disproportionately to maternal morbidity and mortality in comparison to tubal EPs. Cervical EPs are estimated to occur in 1:2000 to 1:18,000 pregnancies [8]. The estimated incidence of cesarean scar EPs is 1:1800 to 1:2216 pregnancies, or 6 % of all EPs in women with at least one cesarean delivery [9, 10]. Interstitial EPs account for 4 % of EPs, though the associated morbidity is much higher, with mortality rates of 2.5 % or 7 times the mortality rate associated with other EP locations, largely due to hemorrhage [11, 12]. Pregnancies embedded within the myometrium (intramural EPs) account for an estimated 1 % of EPs [13]. Abdominal pregnancies account for 1.3 % of EPs [14]. These have been classified as primary or secondary; secondary abdominal EPs are theorized to result from extrusion from the fallopian tube and subsequent intraabdominal reimplantation [15]. Most common implantation sites are in the pouches posterior and anterior to the uterus and on the serosa of the uterus and adnexa; retroperitoneal, omental, bowel, hepatic and splenic implantations have also been reported [16].

Estimates of the incidence of heterotopic pregnancy (HP) vary by article and decade; the risk has been reported from 1:4000 to 1:30,000 women in the general population [5, 17]. The risk of HP following in vitro fertilization (IVF) has been estimated as high as 1:100 women [5, 17, 18]. HPs can include an EP in any of the previously described locations; a triplet HP that included tubal and cervical EPs has even been described [19]. The majority are tubal HPs; in a review of 80 cases of HP in the literature, 66 (72.5 %) were in the ampullary or interstitial portion of the fallopian tube, while 7 were cervical and 3 were implanted in the cesarean scar [17].

Etiology of tubal ectopic pregnancy

The fallopian tube is a carefully controlled environment to facilitate oocyte transport, fertilization, and migration of the early embryo to the uterus for implantation [20] Most data suggest tubal EP stems from both abnormal embryo transport and an alteration in the tubal environment, which enables abnormal implantation to occur [21].

The transport of an oocyte and embryo through the tube relies on both smooth muscle contraction and ciliary beating, which are affected by several local factors—toxic, infectious, immunologic and hormonal. Smoking and infection have been shown to decrease cilia density, while ciliary beat frequency has been shown to be responsive to the changing hormonal milieu of the menstrual cycle [2224]. Samples of fallopian tube epithelium incubated in estradiol (E2) and nitric oxide (NO) have been found to demonstrate increased ciliary motility, which may cause aberrant tubal transport [25, 26]. NO also affects smooth muscle contractility in the fallopian tube; expression of NO has been found to vary during the menstrual cycle, with possible implications for normal and ectopic implantations [27]. Finally, E2-mediated effects via estrogen receptors on gene regulation and expression—including pathways implicated in implantation and apoptosis—may be involved in aberrant tubal function and ectopic pregnancy, though more research is needed to clarify these pathways [2830].

Inflammation in the fallopian tubes is also implicated in the establishment of EP, by inducing tubal dysfunction or damage that may lead to retention of an oocyte or embryo, and by promoting embryo implantation in the fallopian tube via inflammatory cytokines [31]. Following tubal damage by smoking or infection, upregulation of pro-inflammatory cytokines has been noted, promoting embryo receptivity, invasion and angiogenesis in the tube. For instance, interleukin 1 (IL-1), produced by tubal epithelial cells following Chlamydia trachomatis infection, is a vital signal for embryo implantation in the endometrium; IL-1 also recruits neutrophils downstream, leading to further tubal damage [32]. Macrophages and intraepithelial lymphocytes are also increased in women with EP, potentially affecting tubal function and predisposing to tubal EP [3335].

Clinical risk factors

Up to 50 % of women diagnosed with EPs have no identifiable risk factors; however, a number of risk factors have been associated with EP [5]. These include age, smoking, history of EP, tubal surgery or tubal damage, prior pelvic infection, DES exposure, IUD use and pregnancy conceived by assisted reproduction.

Age has been shown to be a risk factor for EP, with the highest incidence over the age of 35 in both spontaneous pregnancies and those conceived after assisted reproductive technologies [7, 36]. The explanation for this observation is unknown, however age is theorized to affect tubal function, including delay of oocyte transport [36, 37].

Prior EP is a strong risk factor for recurrent EP, with a recurrence rate of 5–25 %, or up to 10 times the risk in the general population [3840]. Prior treatment for EP, whether medical or surgical, may result in pathologic changes in tubal motility, ciliary function and uterine contractions [41]. (For fertility outcomes after prior EP, please see “Recurrence and future fertility”).

Smoking is thought to increase the risk of EP by causing tubal dysfunction, including deciliation [22]. Tobacco may cause dysregulation of the paracrine signals needed for coordinated embryo transport and development [21]. In a retrospective review of 481 IVF cycles, the likelihood of a tubal EP was three times higher among smokers [41]. A dose-dependent relationship between smoking and EP has also been confirmed in spontaneous pregnancies [36].

A history of pelvic infection or pelvic inflammatory disease is associated with increased risk for subsequent EP. Chlamydia trachomatis in particular has been implicated as a risk factor for EP, with the risk increasing with each successive infection; ascending infection and resultant salpingitis is thought to lead to tubal dysfunction and aberrant implantation [5, 21, 42, 43]. Other infections potentially associated with pelvic inflammatory disease and tubal damage include Neisseria gonorrhoeae, Mycoplasma and schistosomiasis [44, 45].

Prior tubal surgeries, including but not limited to tubal reanastamosis, salpingostomy, tuboplasty and lysis of adhesions, are risk factors for EP. Similarly, any causes of pelvic adhesions, including endometriosis, appendicitis, or other pelvic surgeries, may distort the anatomy of the fallopian tube [46, 47]. The risk of EP after tubal reanastamosis, specifically, is estimated at 2–13 %, and is similar between abdominal and robotic approaches [6, 48].

After surgical sterilization, the failure rate across all sterilization methods is estimated at 18.5 per 1000, approximately one-third of which are EPs [49]. Women sterilized before 30 years of age are twice as likely to have subsequent EPs as those sterilized after age 30 years. Rates of EP vary by sterilization technique: After bipolar coagulation, 65 % of pregnancies are EP, while after unipolar or clip sterilization, approximately 15 % of pregnancies are EP [50]. The proportion of EP has been shown to be three times higher between 4 and 10 years after sterilization, as compared to the first 3 years [49].

Current IUD use dose not predispose to EP, though a higher proportion of pregnancies conceived with an IUD in place are ectopic as compared to the general population [43, 51]. Among pregnancies conceived with IUDs in place, half are ectopic with a levonogestrel device in place, compared to 1:16 with a copper IUD in place [52]. Overall, any contraceptive use decreases the risk of both intrauterine and ectopic pregnancy.

Assisted reproductive technologies constitute a risk factor for EP, as 2–5 % of pregnancies from assisted reproductive technologies are ectopic [7]. The three main factors contributing to this increased risk are the specific type of procedure, the reproductive health characteristics of the woman, and the estimated embryo implantation potential [21, 53]. A history of infertility, even in the absence of known tubal disease, is associated with EP, with the EP risk increasing with a longer duration of infertility [18, 43]. Tubal factor infertility specifically is associated with a two-fold risk of EP following IVF [52, 54, 55].

Several IVF cycle parameters may be associated with an increased risk of EP. Patients undergoing cycles triggered with gonadotropin releasing hormone (GnRH) agonists instead of recombinant hCG may be at higher risk of EP; in a review of 466 IVF cycles, GnRH agonist triggers were associated with a significantly higher EP rate (5.3 % versus 1.4 % following hCG triggers). This finding is theorized to be due to poor endometrial receptivity following GnRH agonist administration [56].

The number of embryos transferred may be correlated to the EP risk; in a review of 9480 ectopic pregnancies following IVF, the rate of EP following fresh cycles rose significantly from 1.7 % following single embryo transfer to 2.5 % following the transfer of 4 embryos [7]. Depth of transfer may also have an effect; a randomized prospective study of deep versus mid-fundal transfer reported an EP rate of 1.5 versus 0.4 % [57]. Day of embryo transfer has inconsistently been associated with risk of EP in prior studies. A series of 13,654 fresh cycles reported an EP rate of 2.1 % following day 3 embryo transfers, as compared to a rate of 1.6 % following day 5 embryo transfers, which did not reach statistical significance [58]. Conversely, a review of 1994 fresh transfers reported a significant difference in ectopic pregnancy rates between day 3 and day 5 transfers, at 2.4 and 1.7 %, respectively [59].

The transfer of fresh embryos is associated with a higher EP risk as compared to the transfer of thawed embryos; following 15,042 fresh cycles, the EP rate was 1.97 %, which was significantly higher than the 1.01 % EP rate following 12,752 cryopreservation cycles [55]. It is theorized that the controlled ovarian hyperstimulation and hyperestrogenic environment preceding a fresh embryo transfer negatively effects endometrial receptivity [60].

Risk factors for nontubal EP

Overall, the risk factors for ovarian EPs, interstitial EPs, and tubal HPs are similar to those for tubal pregnancy. These include a history of a prior EP, pelvic infections and use of in vitro fertilization [61]. The transfer of four or more embryos during IVF is an additional risk factor for HP [18, 62]. IUD use may be a risk factor for nontubal EP, particularly for ovarian EP [63]. An additional risk factor for interstitial implantation includes prior ipsilateral salpingectomy, with interstitial ectopic pregnancies occurring up to 13 years after salpingectomy [4]. Risk factors for other specific types of nontubal EPs are outlined in the following subsections.

Intramural EP

Risk factors for these rare EPs are theorized to include myometrial injury following uterine curettage, and prior myomectomy or cesarean section [13]. Assisted reproductive technologies have been used in approximately 20 % of case reports, and another 19 % of patients carried a diagnosis of adenomyosis.

Cesarean section EP

Risk for cesarean scar implantation is not clearly correlated to the number of prior cesarean sections [64]. Risk for cesarean section scar implantation has not been correlated to single versus double layer closure of the hysterotomy at the time of cesarean section. Cesarean scar implantation may be more common following cesarean sections for elective indications, which is theorized to be due to impaired healing of an unlabored lower uterine segment [65].

Cervical EP

A history of dilation and curettage (D&C) in a previous pregnancy has been associated with subsequent cervical EP; this risk factor is present in nearly 70 % of cases [66, 67] In-vitro fertilization has been proposed as a risk factor, but often coincides with D&C and other possible risk factors, so is difficult to isolate as an independent contributor to risk [68].

Abdominal pregnancy

Risk factors for abdominal pregnancy are similar to those for tubal EPs, including pelvic inflammatory disease, use of assisted reproductive technologies and endometriosis [69]. Most abdominal pregnancies have been published in case reports; one details the occurrence of a twin pregnancy implanted in the broad ligament after IVF. Uterine perforation was suggested as a possible cause as the embryo transfer was performed using a stylet, which is more rigid than standard transfer catheters [70].

Diagnosis

Serum beta-human chorionic gonadotropin (β-hCG)

The diagnosis of EP often begins with the preliminary diagnosis of pregnancy of unknown location (PUL). PUL is defined as a positive serum beta-human chorionic gonadotropin (β-hCG) in the absence of ultrasound findings indicative of intrauterine or extrauterine pregnancy. Approximately 30 % of patients with PUL will develop an ongoing intrauterine pregnancy (IUP), while the majority (50–70 %) will be diagnosed with failing pregnancies, either miscarriages or EPs [71].

In the stable patient, measurement of β-hCG is crucial to clarify pregnancy location and prognosis. Produced primarily by the syncytiotrophoblast in the placenta, β-hCG is detectable in the blood by the second week of pregnancy until a peak at 10–12 weeks [72]. A single measure of β-hCG is insufficient to clarify pregnancy prognosis, and serial β-hCG levels are commonly used to monitor early pregnancies. The most recent recommendations for β-hCG trends in early pregnancy, derived from a retrospective review of 1005 patients with PUL, suggest the minimum β-hCG rise of an IUP is 35 % in 2 days [73]. A β-hCG rise less than 35 % in 2 days has a positive predictive value of 96.2 %, a negative predictive value of 69.7 %, and an overall accuracy of 80.2 % in predicting EP. Conversely, in this study, in patients eventually diagnosed with miscarriages, the minimum expected β-hCG decline in 2 days is 36–47 % (depending on the starting β-hCG level). Β-hCG cut-offs, however, are not ironclad; using these cut-offs, 16.8 % of EPs and 7.7 % of IUPs would be misclassified solely using serial β-hCG levels. Obtaining a third β-hCG and early ultrasound decreased the misclassification of IUP to 2.7 % [73]. The expected rates of β-hCG rise and decline are the same for multiple pregnancies, following assisted reproduction, and in obese patients [74]. The absolute β-hCG values, however, may be higher in multiple pregnancies or lower in patients with elevated body mass index.

Serum progesterone

Serum progesterone has been explored as a possible serum marker for nonviable pregnancies, including EPs, as progesterone levels have been shown to be lower in ectopic and failing pregnancies than IUPs [75]. Several studies suggest a progesterone cut-off of 10 nanograms per milliliter (ng/mL) for the most accurate identification spontaneous EPs. In a meta-analysis including 4689 patients under 14 weeks gestational age with pain and/or bleeding, a serum progesterone level of less than 10 ng/mL predicted a non-viable pregnancy with a sensitivity of 66.5 % and specificity of 96.3 % [76]. The optimal cut-off may be higher in patients who received fertility treatments, as these patients often have multiple corpora lutea secreting progesterone and often receive exogenous progesterone. A cut-off of 30 ng/mL, 28–49 days after the last menstrual period, may be more appropriate in patients who received clomiphene citrate, while an optimal cut-off has yet to be identified in patients after IVF and is likely highly dependent on the number of days since embryo transfer [77, 78].

Serum progesterone levels, however, have been shown to misclassify more normal pregnancies than serial β-hCG measurements [79]. Serum progesterone also cannot further distinguish between miscarriages and EPs. While progesterone may highlight patients at greater risk for EP, it is insufficient in itself to discriminate between IUPs, miscarriages and EPs [80].

Other serum markers

Several studies have explored alternative serum markers of EP, focusing on proteins associated with placental, endometrial and/or corpus luteal functions, angiogenesis and inflammation [75]. These potential proteins include, but are not limited to: Inhibin A, which is produced by the corpus luteum; activin A, pregnancy-associated plasma protein-A (PAPP-A) and A Disintegrin and Metalloprotease-12 (ADAM-12) which are generated by the placenta; and vascular endothelial growth factor (VEGF), which, produced by a variety of cell types, is crucial for angiogenesis and may be upregulated in EP [75]. Various messenger and micro-RNA—regulators of downstream gene expression—may also be differentially expressed by an EP [81, 82].

Studies have also attempted to combine multiple measures; one such study incorporated VEGF, PAPP-A, and progesterone, and reported sensitivity of 97.7 % and specificity of 92.4 % in diagnosing EP, though this model has not been validated in further studies [83]. For many of these markers, studies are inconclusive, and for all markers, more research is needed before any of these supplants β-hCG as the primary serologic method of differentiating intra- and extrauterine pregnancies [81].

Imaging

Discriminatory zone

Visualization of a gestational sac by transvaginal ultrasound (TVUS), confirming an intrauterine pregnancy (IUP), is expected at serum β-hCG levels above the “discriminatory zone.” The discriminatory zone was initially proposed as 6500 milli-international units (mIU)/mL in 1981, using transabdominal ultrasound [84]. With advances in ultrasound imaging, particularly with the use of transvaginal sonography, the discriminatory zone has been lowered to 1000 to 2000 mIU/mL [85].

Studies report that normal IUPs may still develop in patients with PULs and serum β-hCGs above the discriminatory zone. In a review of patients with PUL, nine women with β-hCGs above 2000 mIU/mL at the time of their TVUS developed intrauterine pregnancies; the highest β-hCG in this group was 4336 mIU/mL [86]. In patients with multiple pregnancies, the serum β-hCG at which an intrauterine gestational sac is seen can be higher than the discriminatory zone identified for singleton IUPs. One review reported a serum β-hCG of 9083 mIU/mL without definitive ultrasound findings in a patient later diagnosed with a triplet pregnancy [87]. Other factors such as obesity or uterine fibroids may also be associated with nonvisualization of an intrauterine gestational sac above the β-hCG discriminatory zone.

Serum β-hCG in the absence of definitive ultrasound findings should not be the sole factor in diagnosing pregnancy location or viability or dictating management, and that gestational age must be taken into account. A positive pregnancy test at any level in the absence of an intrauterine pregnancy should be approached as an EP until proven otherwise.

Accessory ultrasound findings

In the absence of definitive visualization of an EP, additional markers on ultrasound can increase a clinician’s suspicion for EP, and may be useful in conjunction with other clinical data. These include a thin endometrial stripe thickness and the presence of intraabdominal free fluid.

In a review of 591 patients with vaginal bleeding and PUL, IUPs had a significantly higher mean endometrial stripe thickness than miscarriages or EPs (17 mm versus 12 mm, respectively); no intrauterine pregnancies occurred in patients with endometrial stripes below 8 mm in thickness [88]. However, studies have not consistently shown a significant difference in endometrial stripe thickness between miscarriages and EPs [89]. Endometrial stripe thickness may indicate patients at higher risk for abnormal pregnancies but cannot reliably be used in isolation to diagnose EP [90].

A small amount of anechoic free fluid in the posterior cul de sac is normal in both intra- and extrauterine pregnancies [91]. Larger amounts of complex free fluid, particularly in Morrison’s pouch by the liver, may indicate rupture of an EP, and correlates well to hemoperitoneum observed intraoperatively [91, 92]. Hemoperitoneum can be assessed in the emergency setting using a Focused Assessment with Sonography for Trauma (FAST) scan, which is a bedside ultrasound assessing for free fluid in the perihepatic, perisplenic and pelvic space; the full trauma assessment, not applicable to patients with suspected EP, also includes the pericardial space [93]. The determination of extent of hemoperitoneum and need for intervention depends on clinician assessment and the patient's hemodynamic stability. Of note, if an ultrasound shows an IUP, the risk of EP is much reduced, though not zero. Though rare, the patient may still be at risk of heterotopic pregnancy, particularly following IVF [94].

Ultrasound diagnosis of tubal EP

In women presenting with bleeding or pain, pregnancy location is often not definitively visualized on the initial ultrasound at presentation; however, diagnosis of EP by ultrasound is possible when following careful guidelines. Identification of a gestational sac and fetal pole, with or without cardiac activity, or a hyperechoic ring—called the ‘bagel’ or ‘tubal’ sign (Fig. 1)—with circumferential Doppler flow (Fig. 2) is highly suggestive of an ectopic pregnancy [95, 96]. If a suspicious mass moves separately from the ovary—called the ‘blob’ sign - the positive predictive value is above 90 % in a symptomatic woman with a positive serum b-hCG and no IUP on transvaginal ultrasound [97, 98].

Fig. 1
figure1

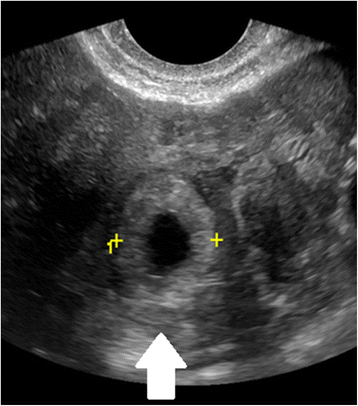

Tubal ectopic pregnancy by transvaginal ultrasound. The arrow indicates the ectopic gestation with a surrounding hyperechoic ring, called the ‘bagel’ or ‘tubal’ sign

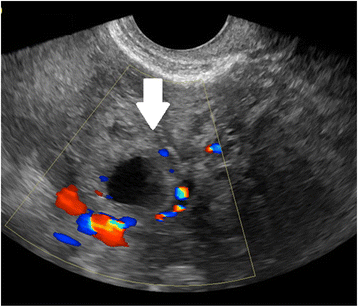

Fig. 2
figure2

Tubal ectopic pregnancy by transvaginal ultrasound. The arrow indicates the ectopic gestation with circumferential Doppler flow, called the “Ring of Fire”

Ultrasound findings specific to nontubal EPs

Ectopic pregnancies occurring in less common anatomic areas can also be identified by ultrasound according to specific criteria. Diagnostic criteria of each type of nontubal ectopic pregnancy are discussed below. All of these diagnostic criteria assume the absence of a visualized IUP.

Ultrasound criteria for diagnosis of an interstitial ectopic pregnancy include a gestational sac at least 1 cm lateral to the edge of the uterine cavity, with a thin (5 mm or less) layer of overlying myometrium surrounding it (Figs. 3 and 4) [99, 100]. An ‘interstitial line’ may also be seen (Fig. 5) [101].

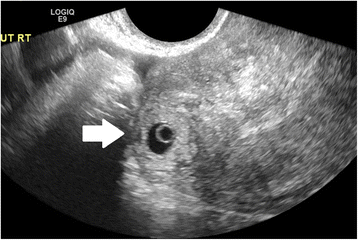

Fig. 3
figure3

Interstitial ectopic pregnancy by transvaginal ultrasound. The arrow indicates thin (<5 mm) myometrium overlying the ectopic pregnancy. This finding by ultrasound, in combination with the lateral location of the gestation, has a reported specificity of 88-93 % but a sensitivity of just 40 % [101].

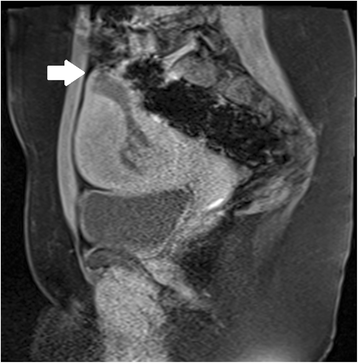

Fig. 4
figure4

Interstitial ectopic pregnancy by magnetic resonance imaging, T1 weighted. The arrow indicates thin (<5 mm) myometrium overlying the ectopic pregnancy. In a stable patient, MRI may be useful in the confirmation of interstitial pregnancy location

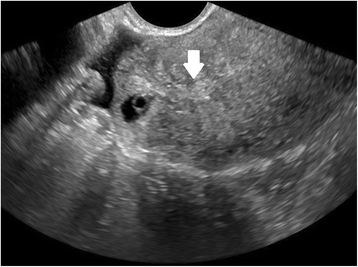

Fig. 5
figure5

Interstitial ectopic pregnancy by transvaginal ultrasound. The arrow indicates the ‘interstitial line,’ extending from the endometrium to the cornua, abutting the suspicious mass

A cervical EP is identified on ultrasound by a distended cervical canal containing a gestational sac with peripheral Doppler flow (Fig. 6), below a closed internal cervical os [102, 103]. The ‘sliding organ’ sign, or movement when pressure is applied with the transvaginal probe, is associated with spontaneous abortions in progress and should be absent in a cervical ectopic pregnancy.

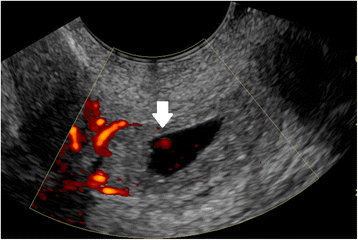

Fig. 6
figure6

Cervical ectopic pregnancy by transvaginal ultrasound. Doppler shows circumferential flow. The arrow indicates Doppler flow inside the gestational sac, associated with the embryo. Such Doppler flow will not be found in a spontaneous abortion, which may slide down into a similar position at the cervix

Diagnostic criteria for a cesarean scar EP by ultrasound include visualization of the gestational sac at the site of the prior hysterotomy (Fig. 7), outside the endometrial cavity [104]. The myometrium should be very thin (1–3 mm) or absent between the gestational sac and the bladder (Fig. 8). A negative ‘sliding organ’ and the presence of peripheral Doppler flow are expected [9].

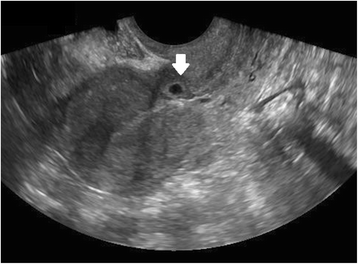

Fig. 7
figure7

Cesarean scar ectopic pregnancy by transvaginal ultrasound. The arrow shows the gestational sac implanted in the region of the cesarean scar, clearly outside the endometrial canal

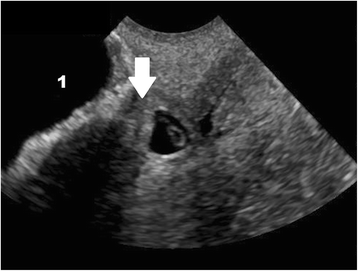

Fig. 8
figure8

Cesarean scar ectopic pregnancy by transvaginal ultrasound. The arrow indicates the thin myometrium (3 mm) between the bladder (indicated with the number 1) and the gestational sac

On ultrasound or MRI, intramural EPs should be completely surrounded by myometrium circumferentially, with no communication with the intrauterine cavity [69, 105]. Intramural EPs are notoriously challenging to diagnose on ultrasound and have been mistaken for fibroids or intrauterine pregnancies [106].

Ovarian EPs may be suspected by ultrasound when a hypoechogenic area is seen surrounded by a wide echogenic ring with peripheral Doppler flow. Some may be completely surrounded by ovarian cortex. [106, 107] A fetal pole is seldom present [107]. When pressure is applied with the transvaginal probe, an ovarian EP will move with the ovary, and should be connected to the uterus by the ovarian ligament [107, 108]. These EP can be difficult to differentiate from ovarian cysts, which may have a similar appearance and peripheral Doppler flow [108]. Given the difficulty of making this diagnosis by imaging, laparoscopy is often required for definitive diagnosis [107].

Abdominal EP is rare, and ultrasound guidelines are few. Suggested guidelines include visualization of an extrauterine gestational sac, fetus and/or placenta, with no myometrium seen between the fetus and urinary bladder [109]. This gestational sac or fetus will be in unusually close proximity to the anterior abdominal wall, and may be surrounded by loops of bowel. There should be no evidence of more common ectopic implantation sites, such as the fallopian tubes or cesarean section scar [110].

Endometrial sampling

At many medical centers, a patient with a PUL and an abnormal β-hCG trend as described above may receive methotrexate (MTX) without precise diagnosis [111]. Up to 40 % of these patients, however, may ultimately have failing IUPs, unnecessarily exposing these patients to MTX [112]. While not universally employed, endometrial sampling may allow these patients to avoid unnecessary treatment with MTX [113].

Identification of villi on endometrial sampling is diagnostic of a failed IUP, and in such cases, no further treatment is usually needed [5, 114, 115]. Serum β-hCG should also be checked the day after endometrial sampling; a decline of 15–20 % after sampling indicates the disruption of a failing IUP, even if no villi are identified [5]. A postoperative plateau or increase in the β-hCG value strongly suggests an EP. A patient with an adequate decrease in the β-hCG level after sampling can be monitored with serial β-hCG measurements until levels are undetectable, or until pathological evaluation of the curettage specimen shows chorionic villi [116].

The standard endometrial sampling method for PUL is D&C, though these are associated with greater cost and anesthesia requirement than outpatient procedures [112, 117, 118]. Endometrial biopsy pipelles, while effective in screening for endometrial carcinoma, have insufficient sensitivity and specificity to replace D&C in the diagnosis of PUL [119, 120]. Karman cannulas, attached to hand-held suction devices, are as efficacious as D&C for diagnosing endometrial pathology and are frequently used for the evacuation of first trimester pregnancies in the outpatient setting [121124]. In a review of 45 patients with PUL and abnormal β-hCG trends after IVF, over two-thirds of patients were diagnosed with failing IUP by final pathology and/or falling β-hCG, and were spared MTX [116]. It is unknown whether this device performs similarly in spontaneous pregnancies.

Medical management

The most common interventions for the treatment of EP are medical management with systemic MTX and surgical removal of the pregnancy. Medical management of EP with MTX has been demonstrated to be more cost-effective than surgical management while maintaining similar treatment success and future fertility [38, 125127]. Injections of hyperosmolar glucose into tubal EPs have been studied, but have significantly higher failure rates than standard medical or surgical management and are not recommended [128130].

MTX is a dihydrofolate reductase inhibitor, disrupting DNA and RNA precursor synthesis; it targets rapidly dividing cells and, in an EP, disrupts primarily trophoblastic tissue [131]. Its use as treatment for EP was first reported in 1982 [132]. The most common side effects associated with MTX treatment for EP include pelvic pain, nausea, headaches, abdominal pain, and dermatitis. Less common side effects include mucositis, diarrhea, and alopecia [127, 133].

Several studies have demonstrated the efficacy of intramuscular (IM) MTX for treatment of EP, though success rates are inversely correlated to β-hCG levels [134]. In a meta-analysis including 503 women with EPs treated with single dose MTX, successful treatment, defined as avoidance of surgery, for initial β-hCG levels between 1000 and 1999 mIU/mL was 94.4 %, compared with just 81.8 % in patients with starting β-hCG levels of 10,000 to 150,000 mIU/mL [134]. A β-hCG above 5000 mIU/mL was proposed as a relative contraindication to treatment with MTX, with a success rate of just 85 %.

Pre-methotrexate assessment

Before treatment with MTX, blood work should be obtained to assess hematologic, hepatic and renal function; a chest x-ray should be considered in patients with active pulmonary disease. The patient’s Rhesus (Rh) status must also be obtained in order to determine the need for Rho(D) immune globulin therapy, required in Rh negative patients. A pelvic ultrasound should be obtained to characterize any ectopic mass and exclude a concomitant IUP. Several contraindications for treatment of EP with MTX exist (Table 1) [135]. Patients with ectopic pregnancies and relative contraindications to treatment with methotrexate may receive the medication if deemed appropriate by the clinician; these patients should be hemodynamically stable and well counseled and have capacity to make the decision [6].

Table 1 Absolute and relative contraindications of treatment of EP with MTX

Patients should be advised to stop taking prenatal vitamins, as the folate supplementation will counteract the action of MTX. Patients should also avoid excessive sunlight due to possible MTX-induced dermatitis; nonsteroidal anti-inflammatory drugs, which may delay renal excretion of MTX; alcohol, which may lead to elevation of hepatic enzymes; and sexual activity, vigorous physical activity and pelvic exams, which could lead to rupture of the EP [136].

Systemic methotrexate

Single dose methotrexate

The single dose regimen consists of an IM injection of MTX (50 mg/m2 of body surface area), with administration of additional doses at weekly intervals in patients with an inadequate response (Table 2) [6]. Repeat injections are permitted every 7 days for up to 4 doses; a second dose is needed in 20 % or more of patients, while less than 1 % of patients require 3 or more doses [137]. The single dose regimen is associated with fewer side effects as compared to other regimens [6, 138, 139].

Table 2 Single dose methotrexate (MTX) for treatment of ectopic pregnancy

Two dose methotrexate

A two dose regimen has been proposed by Barnhart and colleagues (Table 3) [133]. In their prospective study of 101 women with a mean serum β-hCG at treatment initiation of 2013 mIU/mL, the success rate, defined as avoidance of surgery, was 87 %. Patients suffered just mild and transient side effects, including nausea, headaches and abdominal pain, despite the lack of leucovorin supplementation.

Table 3 Two dose methotrexate (MTX) for treatment of ectopic pregnancy

Multiple dose methotrexate

The multiple dose regimen was derived from chemotherapeutic regimens for gestational trophoblastic disease, involving administration of MTX and leucovorin (folinic acid) on alternating days for 8 days or until the β-hCG falls by 15 % from its peak value (Table 4) [6]. Up to 50 % of patients will not require the full 8 day regimen [6]. Leucovorin is administered to counteract the mechanism of MTX to limit side effects.

Table 4 Multiple dose methotrexate (MTX) and leucovorin (LEU) for treatment of ectopic pregnancy

The reported success rates among the dosing regimens vary in the literature [127, 137, 138]. A recent randomized controlled trial of 120 women receiving single or multiple dose MTX reported no difference in success rates, though the time until β-hCG normalization was longer following the single dose regimen (22.3 vs. 18.3 days, respectively) [140]. Conversely, a meta-analysis of 1327 EPs reported that the rate of successful treatment with multiple dose MTX was significantly higher than with single dose MTX (92.7 vs. 88.1 %, respectively) [137]. Side effects, including nausea, vomiting and alopecia, were less common in the single dose treatment group. Of note, both treatment regimens were more likely to be successful in patients reporting side effects of the MTX.

Few comparisons have been published involving the two dose regimen. A retrospective comparison of 87 women receiving either single or two dose MTX regimens reported comparable success rates of 87 and 90 % at mean starting serum hCGs of 4801 and 4278 mIU/mL, respectively, and no difference in side effects [141]. In the literature, it is unclear which of these (single, two or multiple dose) regimens is used most commonly, though single and multiple dose regimens are discussed more often than the two dose regimen; MTX dosing is likely dependent on the provider and/or institution.

Regardless of which treatment regimen is chosen, if the β-hCG level does not decline adequately—after the multiple dose regimen, or 4 doses of MTX in single or two dose regimens—surgical management should be considered. A continued rise in serum β-hCG throughout the multiple dose regimen or after 2 doses of single dose MTX may indicate higher risk of rupture of a tubal EP [6, 142]. Finally, medical management should be abandoned in favor of surgical management if the patient presents with hemodynamic instability or other clinical parameters concerning for ruptured EP, such as pain. If a patient’s serum β-hCG declines adequately and she requires no further intervention, the β-hCG level should be monitored weekly to an undetectable level. On average, the β-hCG normalizes in 2 to 3 weeks, but can take up to 8 weeks in patients with higher starting β-hCG levels [6, 143].

Surgical management

Surgical management is indicated in patients with contraindications to medical treatment as described in the previous section, hemodynamic compromise or other clinical signs of ruptured EP including pain or evidence of intra-abdominal bleeding, and according to patient preference.

The standard surgical intervention was laparotomy until the laparoscopic approach was introduced in 1973 by Shapiro and Adler; it has since gained wide acceptance [144]. Three prospective randomized trials have demonstrated the superiority of a laparoscopic approach over laparotomy in terms of lower blood loss, pain medication requirement, length of hospital stay and cost [145148]. Reproductive outcomes, including rates of recurrent EP and subsequent IUP, are not significantly different between laparoscopy and laparotomy [149].

Regardless of the mode of abdominal entry, two methods of excision of a tubal EP have been extensively reported: Salpingectomy, or removal of the fallopian tube in part or in full, and salpingostomy (also called salpingotomy), or removal of the EP through a tubal incision while leaving the tube in situ. Salpingectomy is recommended in cases of extensive tubal damage and/or rupture, uncontrolled bleeding, prior tubal sterilization, or a large tubal EP (5 cm or more in diameter) [143]. The surgical approach is also determined by the status of the patient’s contralateral fallopian tube, the patient’s plans for future fertility, and surgeon comfort or preference.

Salpingectomy

Despite being termed “radical” in the literature, salpingectomy results in similar rates of subsequent IUP and ectopic recurrence as compared to salpingostomy. A randomized control trial of 446 women undergoing salpingostomy or salpingectomy reported similar recurrent EP and ongoing pregnancy rates between groups: 8 and 60.7 %, respectively, after salpingostomy and 5 and 56.2 %, respectively, after salpingectomy [39]. Persistent trophoblastic tissue, which usually requires treatment with MTX, was more common after salpingostomy (7 %) than after salpingectomy (<1 %). Of note, 43 women (20 %) randomized to salpingostomy underwent an intra-operative conversion to salpingectomy during the initial surgery due to uncontrolled bleeding. Similarly, in a review of 1064 women with EPs attempting subsequent conception, the rates of intrauterine pregnancies within 2 years were not significantly different, at 67 % after salpingectomy and 76 % after salpingostomy [38]. The rate of EP recurrence was also similar between groups, or 18.5 % overall. Following salpingectomy, if final pathologic analysis of the fallopian tube demonstrates evidence of a tubal gestation, no follow up β-hCG levels or any other assessment is needed.

Salpingostomy

Intraoperatively, if salpingostomy is planned, dilute vasopressin can be injected at the planned incision site for additional hemostasis [143]. After a 1–2 cm linear incision is made with electrocautery, laser or scissors over the bulging ectopic gestation, the contents are removed using forceps or high pressure irrigation, also called hydrodissection [143, 150152]. The use of hydrodissection to flush out gestational products may be preferable to piecemeal removal with forceps, as the latter can lead to incomplete removal of trophoblastic tissue [4]. The tubal incision can be left open to heal by secondary intention or sutured closed; a Cochrane review reported an insignificant difference in rates of recurrent EP and subsequent IUP between the two techniques [148].

After salpingostomy, weekly β-hCG measurements are necessary to rule out persistent trophoblastic tissue, which can occur in up to 20 % of cases [153]. Administration of a single dose of intratubal MTX intraoperatively or IM MTX within 24 h postoperatively has been shown to decrease the rate of persistent trophoblastic tissue (from 14.5–17.5 to 0–1.9 %) [154, 155].

Expectant management

A carefully selected subset of patients may be candidates for expectant management of tubal EP. Studies suggest that well-counseled, stable women with EPs and serum β-hCG of 175–200 mIU/mL and declining may be candidates for expectant management.

In an observational study of 107 patients diagnosed with tubal EP by transvaginal ultrasound (a mass separate from the ovary), expectant management was offered to asymptomatic patients without fetal cardiac activity [156]. Expectant management was discontinued due to severe pain or failure of the serum β-hCG to decline on sequential measurements. Ninety-six percent of women with a β-hCG of 175 mIU/mL or less did not require other treatment, compared to 66 % of those with β-hCG of 175–1500 mIU/mL and just 21 % of those with β-hCG above 1500 mIU/mL. Expectant management was more likely to be successful in patients with serum progesterone below 10 nmol/L (3.1 ng/mL), gestational age less than 6 weeks, and EP mass greater than 15 mm. Similarly, a prospective observational study of 118 patients with EPs managed expectantly reported that 88 % resolved with β-hCG levels below 200 mIU/mL, as opposed to just 25 % with β-hCG levels above 2000 mIU/mL [157].

The American College of Obstetricians and Gynecologists recommends that patients with EPs and serum β-hCG less than 200 mIU/mL and decreasing (though this is not strictly defined) are potential candidates for expectant management [136]. Patients undergoing expectant management for EP must be reliable for follow up, and willing and able to accept the risks of EP rupture, hemorrhage and emergency surgery.

Management of nontubal EP

Ovarian EP

Management of ovarian EP is most commonly surgical, and little data is available on the medical management of this condition [6]. Successful treatment of ovarian EPs with systemic MTX alone has been described, using either the single or multiple dose regimens, up to a serum β-hCG of 5201 mIU/mL [158, 159]. Systemic MTX has also been described, following limited biopsy of a suspected ovarian EP, to address residual trophoblastic tissue [160, 161]. Successful management with transvaginal or laparoscopic injections of 50 mg of MTX directly into the ovarian EP, with β-hCG levels up to 12,075 mIU/mL, has also been reported [162, 163].

Often, laparoscopy is required for diagnosis, at which point definitive surgical management is often completed [107]. Management of ovarian EPs is primary surgical, and laparoscopic surgery has become the standard for management of hemodynamically stable patients with ovarian EPs [164, 165]. Resection of the EP and retention of the ovary is a reasonable surgical objective, particularly in patients desiring future fertility. This resection has most commonly taken the form of an ovarian wedge resection, attempting to remove as little normal ovarian tissue as possible [165]. In reports of surgical management of ovarian ectopic, hemostasis is obtained with electrocautery or ultrasonic energy; the latter is less damaging to the surrounding ovarian cortex [166, 167].

Cervical EP

Management of cervical pregnancies may be medical or surgical, with many centers utilizing a combination of approaches. The use of single or multiple dose systemic MTX and/or local MTX has been described in case reports and small series [168170]. A series of 38 cervical EPs treated with local MTX, with additional local potassium chloride (KCl) in the presence of fetal cardiac activity, reported an overall success rate of 87 %; all failures had fetal cardiac activity [171]. In a review of 52 cervical EPs, 61.5 % were successfully treated with upfront systemic or local MTX [172]. Gestational age greater than 9 weeks, β-hCG titer over 10,000 mIU/mL, presence of fetal cardiac activity or fetal crown-rump length greater than 10 mm were associated with failure of upfront MTX.

Dilation and curettage is seldom used in isolation as a first line treatment, given the risk of hemorrhage; in a review of 15 cases with mean gestational age of 8.9 weeks, the risk of hysterectomy was 40 % [103]. Methods for decreasing the risk of bleeding include injection of vasoconstricting agents into the cervix, such as dilute vasopressin, or placement of cervical stay sutures [173]. Placement of intracervical catheter for tamponade, such as a 30 mL foley catheter, has also been described [174]. In the presence of fetal cardiac activity, preoperative injection of feticides may decrease the risk of hemorrhage [175].

Uterine artery embolization (UAE) may have a role in preventing or controlling hemorrhage; case series have reported both prophylactic UAE prior to medical and/or surgical management, or emergent use to control hemorrhage [170, 176178]. This therapy is not currently recommended for women who wish to conceive in the future, as its ramifications for fertility have not been conclusively described.

Cesarean scar EP

Interruption of a cesarean scar EP upon diagnosis is recommended, given the risk of hemorrhage, hysterectomy and maternal morbidity [179, 180]. Live births resulting from a cesarean scar ectopic implantation have been described; however, these deliveries are frequently associated with hemorrhage and emergent cesarean hysterectomy [9, 181, 182]. In a series of 10 patients with cesarean scar EPs with fetal cardiac activity who elected for expectant management, 4 patients (40 %) had live births, 3 of whom (75 %) required hysterectomies; overall, 80 % required hysterectomies [183].

Medical management with single or multiple dose systemic MTX regimens has been described. Patients with serum β-hCG greater than 6000 mIU/mL may be at higher risk of requiring additional therapies, including local MTX, D&C or uterine artery embolization (UAE) [9, 64]. Local injections of MTX or KCl have also been described, usually in conjunction with systemic MTX or other surgical management (D&C or hysteroscopy) [184].

Several surgical approaches have also been reported, with the benefit of leading to more rapid resolution of β-hCG levels as compared to medical management [185]. Regardless of the chosen treatment modality, serum β-hCG should be followed to zero, as persistent trophoblastic tissue may occur after any medical or surgical treatments except hysterectomy [9, 186]. In patients undergoing upfront surgical management, D&C alone is often complicated by hemorrhage. In a meta-analysis of 21 cases, 76 % required further treatment, and 14 % required hysterectomy [64]. Initial steps for managing hemorrhage include tamponade with a transcervical catheter and hemostatic cervical cerclage sutures [187]. UAE has been used as both hemorrhage prophylaxis and salvage therapy in the event of hemorrhage [188]. UAE is not currently recommended for patients desiring future fertility.

Hysteroscopic resection of cesarean scar EPs has been performed successfully and without complication using biopolar or ‘electric’ loops, in patients with serum β-hCG up to 28,333 mIU/mL [186, 189, 190]. Hysteroscopic resection is not recommended when the residual myometrium is less than 3 mm, given the risk of anterior wall perforation and bladder injury [191, 192].

Transabdominal excision of these lesions has been described by laparotomy, and standard or robotic-assisted laparoscopy [191]. Resection also allows for revision of the lower uterine segment, which theoretically may reduce risk for recurrence [193]. Laparotomy may be indicated in patients with suspected uterine rupture and hemodynamic instability, and hysterectomy may be required for otherwise uncontrollable hemorrhage [194]. Definitive management with total laparoscopic hysterectomy has also been described, in a patient with a starting β-hCG of 155,009 mIU/mL who failed treatment with local KCl and multiple dose MTX [195]. Of note, complications of medical or surgical management include formation of arterio-venous malformations, which are prone to bleeding; in one series of 60 cesarean scar EPs, this occurred at a rate of 8.5 %, requiring UAE or hysterectomy (Fig. 9) [183].

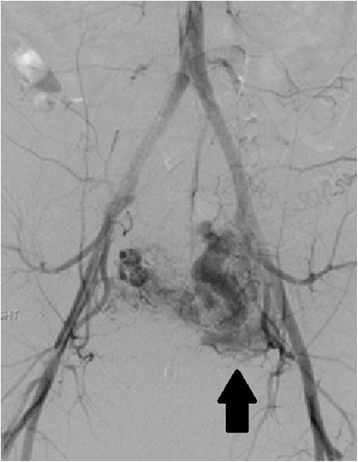

Fig. 9
figure9

Left uterine artery arterio-venous malformation (AVM) by pelvic angiogram. This patient had undergone an uncomplicated ultrasound-guided D&C for a 10 week size cesarean scar ectopic pregnancy 2 months prior to presentation with vaginal bleeding and diagnosis of a left uterine artery AVM (arrow). The AVM was embolized with coils, but the patient required emergent hysterectomy for hemorrhage

Interstitial EP

In patients who are hemodynamically stable without evidence of rupture of the interstitial EP, non-surgical management may be appropriate. Both single dose and multiple dose MTX regimens have been used to treat interstitial EPs with comparable success, ranging from 66 to 100 % [196]. UAE has also been successfully used as an adjunct to these therapies [197, 198]. Local MTX has also been used; a meta-analysis of 11 cases reported a success rate of 86 %, up to a serum hCG of 35,000 mIU/mL [4].

Surgical intervention is indicated following failed medical management, according to patient preference, or when the patient demonstrates hemodynamic instability and/or findings concerning for rupture of an interstitial EP, including pain or evidence of hemoperitoneum on imaging. Laparotomy and hysterectomy were formerly first line treatment, likely due to late diagnosis of interstitial pregnancies and higher rates of rupture and hemorrhage. These methods may still be necessary in patients with hemodynamic instability and severe hemorrhage.

Minimally invasive surgeries are increasingly pursued as imaging modalities allow for earlier diagnosis. Small case series have described ultrasound or laparoscopy-guided dilation and curettage [199201]. Several laparoscopic surgical approaches have been described, including cornuostomy, salpingostomy, and cornual resection.

Cornuostomy entails injection of dilute vasopressin at the cornua followed by a linear incision, through which the gestation is removed with blunt and/or sharp dissection or hydrodissection, after which the incision is closed with absorbable suture [4]. Case series have also described successful surgical management with placement of an Endoloop around the base of the cornua before or after excision for both hemostasis and closure [202]. Less commonly, salpingostomy for interstitial ectopic has been reported, which is most appropriate for interstitial EP less than 3.5 cm, given the smaller incision with limited visualization [203, 204].

Cornual resection has been recommended for surgical management of more advanced interstitial pregnancies (greater than 3–4 cm) [12, 205]. This technique entails injection of dilute vasopressin followed by a circumferential incision using scissors or an energy source—electrosurgical or ultrasonic—preferably 1–2 cm above the cornual pregnancy to allow for redundant serosa and myometrium for closure [11, 12]. This incision should be closed in layers akin to a myomectomy closure. The fallopian tube adjacent to this cornua should also be excised. UAE has also been used as a prophylactic measure before laparoscopic cornual resection [206].

Intramural EP

As with other types and locations of EP, management of intramural EPs is largely dictated by patients’ clinical stability at presentation. In clinically stable patients with intramural EPs diagnosed by imaging, medical management is an option. In case reports, intramural EPs have been treated with single or multiple dose systemic MTX, successful in patients with serum β-hCG up to 25,140 mIU/ml [207209]. Successful management with local MTX and KCl for an intramural EP with fetal cardiac activity and a β-hCG of 74,872 mIU/mL has also been reported, as well as UAE for an intramural EP with a β-hCG of 12,250 mIU/mL [210, 211].

Most cases of intramural EP reported in the literature have been managed surgically via laparotomy, sometimes requiring hysterectomy, as many patients present with rupture of the EP and hemorrhage [13]. Given the increasing ability of noninvasive imaging to diagnose intramural EPs and the advancement of minimally invasive surgery, more recent case reports have described laparoscopic excision of intramural ectopic gestations [212, 213]. A surgical approach should be determined by a patient’s clinical stability, desire for future fertility, and location of the ectopic gestation.

Abdominal EP

Intervention for resolution of an abdominal EP is recommended upon diagnosis, given the extremely high risk for maternal morbidity; the mortality risk associated with abdominal EPs is nearly 8 times the rate with tubal EPs [16]. Rare reports detail expectant management in order to attain a live birth. Expectant management of abdominal EPs may potentially be considered when the diagnosis is made after 20 weeks of gestation in a healthy patient who can be followed very closely through a tertiary care center. The fetus should have no congenital malformations, and the placenta should be implanted away from the upper abdomen. Delivery is recommended at 34 weeks, and the placenta is often left in place given the risk for hemorrhage [214, 215].

Most abdominal EPs reported in the literature have been managed surgically; the operative approach must be tailored to the patient’s clinical presentation and stability, and the location of the EP. Abdominal EPs have been approached by laparoscopy or laparotomy, with or without prophylactic embolization of the placental bed; more recent cases in the literature have been managed laparoscopically in hemodynamically stable patients [216218]. Intraoperative blood transfusion is common; in a meta-analysis, the highest transfusion rate was associated with hepatic (46 %) and retroperitoneal (40 %) implantations, while abdominal wall implantations had the lowest transfusion rate (14 %) [16].

When abdominal EPs are removed surgically at any gestational age—though more commonly after 20 weeks of gestation—the placenta can be left in place to avoid hemorrhage [16]. Embolization of the remaining placenta and/or administration of systemic MTX or mifepristone have been employed to hasten resolution of these retained placentas [219, 220]. The most common complication of an intraabdominal retained placenta is infection [16].

As diagnostic modalities have advanced and these pregnancies are diagnosed earlier, case reports of medical management for abdominal EP have been published. Medical management with systemic MTX and/or local injections of MTX or KCl has been reported, though nearly half may require subsequent surgical management [16, 221223]. Despite logistic regression, a meta-analysis failed to identify risk factors for failed medical management [16].

Heterotopic pregnancies

Treatment of a HP is tailored to the specific EP location, and the patient’s clinical presentation and stability [78]. Medical management of tubal HPs includes local injections of KCl or a hyperosmolar glucose solution, though over half of tubal HPs managed with local KCl may require subsequent salpingectomy [17, 224]. Treatment with systemic or local MTX, a known teratogen, is contraindicated in the presence of a viable IUP [225]. Surgical management has been described more frequently, as patients with tubal HPs present more often with rupture and hemodynamic compromise than those with tubal EPs [226]. Salpingectomy is preferable to salpingostomy as persistent trophoblastic tissue cannot be monitored in the setting of ongoing IUP [78]. Patients with HPs suffer spontaneous abortions at higher rates than intrauterine-only pregnancies (up to 30 %) [18].

Nontubal HP

For the management of interstitial HPs, expectant management, aspiration or injection of hyperosmolar glucose of the interstitial HP, and cornual resections have been reported, leading to live birth [227229]. One patient attempting expectant management required a laparotomy for rupture of the interstitial EP [227].

Cesarean HPs have been successfully managed using local KCl and/or aspiration of the gestation, or excision by laparoscopy or hysteroscopy [230]. Hysteroscopy carries the theoretical risk of disrupting an IUP due to the high pressure infusion of fluid.

Cervical HPs addressed with expectant management, local KCl or hyperosmolar glucose injections, extraction with forceps, suction curettage or hysteroscopic resection, with or without subsequent foley tamponade, have resulted in live birth. Rare case reports also detail cerclage placement following intervention. Following this range of interventions, a review of 30 cases reported a live birth rate of 80 % [231].

Abdominal HPs are rarely encountered, though live birth after local injection of KCl into the abdominal pregnancy has been reported in 3 cases [232]. Ovarian HPs are similarly rare; live birth after local hyperosmolar glucose injection has been reported, as well as after laparoscopic wedge resection; surgical intervention carries the theoretical risk of interrupting hormonal support of the coexisting IUP by the corpus luteum [233, 234].

Recurrence and future fertility

The risk of recurrence of tubal EP ranges from 5 to 25 % [3840, 235]. The risk of recurrent EP is not affected by treatment modality—medical or surgical—or surgical procedure [38]. In a randomized controlled study of 446 women undergoing surgical management for tubal EP, the recurrence rate was similar after salpingostomy (8 %) and salpingectomy (5 %) [39].

A review of 53 cases of prior interstitial EP reported a recurrence rate of 9.4 % following either medical or surgical management [236]. In patients with a prior interstitial EP, data is limited regarding the risk of uterine rupture in a subsequent IUP, though uterine rupture has been reported after both expectant management and cornual resection [237, 238]. Vaginal deliveries have been reported following cornuostomy or cornual resection; the optimal mode of delivery in this group remains to be determined [12].

The reported rate of recurrent cesarean scar EP is highly variable, as high as 25 % in small series [239, 240]. Risk factors for recurrence are bulging of the prior cesarean scar EP into the uterovesical fold, initial presentation with irregular vaginal bleeding or pain, early termination (≤56 days) of the first cesarean scar EP, prior cesarean delivery at a rural community hospital and thin lower uterine segment (5 mm or less at the time of diagnosis of recurrent cesarean scar EP) [241].

The risk of recurrent cervical EP appears to be low: One recurrence was noted in a series of 34 pregnant women with prior cervical EP treated with several different modalities [67]. The data are insufficient to comment on subsequent IUP and recurrence rates in patients with prior ovarian, intramural or abdominal EPs. Rates of recurrence and IUP after HP have not been extensively reported in the literature, and likely depend on the location of the HP and the treatment modality.

Regardless of ectopic location, conception is not recommended for 3 months after exposure to MTX, though data for this recommendation is lacking [6]. Results of population-based studies of pregnancy outcomes after a prior tubal EP are encouraging, and independent of treatment modality. The rates of IUP have been shown to be similar following salpingectomy and salpingostomy in several large series [39, 40]. Additionally, among 1064 women with prior tubal EPs attempting conception, the rates of IUP within 2 years were similar among salpingectomy (67 %), salpingostomy (76 %), and medical management (76 %) [38]. After two prior EPs, however, the rate of subsequent IUP may be as low as 4 % [235].

Conclusions

Ectopic pregnancy is a relatively common clinical scenario in general gynecology and reproductive medicine. While tubal pregnancies are the most common, EPs can occur throughout the abdomen and pelvis. Treatment in stable patients is often medical, though patients meeting certain clinical criteria or with EPs outside the fallopian tube may require differing and/or more invasive treatment, including excision by laparoscopy or, less commonly, laparotomy. Of patients with tubal EPs, the likelihood of future IUP is high and independent of treatment modality.

Abbreviations

ADAM-12:

A Disintegrin and Metalloprotease-12

ART:

Assisted reproductive technology

D&C:

Dilation and curettage

E2:

Estradiol

EP:

Ectopic pregnancy

FAST:

Focused assessment with sonography for trauma

GnRH:

Gonadotropin-releasing hormone

hCG:

Human chorionic gonadotropin

HP:

Heterotopic pregnancy

IM:

Intramuscular

IUD:

Intrauterine device

IUP:

Intrauterine pregnancy

IVF:

In vitro fertilization

KCl:

Potassium chloride

LEU:

Leucovorin

MTX:

Methotrexate

NO:

Nitric oxide

PAPPA:

Pregnancy-associated plasma protein-A

PUL:

Pregnancy of unknown location

TVUS:

Transvaginal ultrasound

UAE:

Uterine artery embolization

VEGF:

Vascular endothelial growth factor

References

  1. 1.

    Creanga AA, Shapiro-Mendoza CK, Bish CL, Zane S, Berg CJ, Callaghan WM. Trends in ectopic pregnancy mortality in the United States: 1980–2007. Obstet Gynecol. 2011;117:837–43.

  2. 2.

    Arleo EK, DeFilippis EM. Cornual, interstitial, and angular pregnancies: clarifying the terms and a review of the literature. Clin Imaging. 2014;38:763–70.

  3. 3.

    Hoffman BL, Schorge JO, Schaffer JI, Halvorson LM, Bradshaw KD, Cunningham F, et al. Chapter 7. Ectopic pregnancy. In: Hoffman BL, Schorge JO, Schaffer JI, Halvorson LM, Bradshaw KD, Cunningham F, Calver LE, editors. Williams gynecology. 2nd ed. New York: McGraw-Hill; 2012. http://accessmedicine.mhmedical.com.ezp-prod1.hul.harvard.edu/content.aspx?bookid=399&Sectionid=41722295.

  4. 4.

    Lau S, Tulandi T. Conservative medical and surgical management of interstitial ectopic pregnancy. Fertil Steril. 1999;72:207–15.

  5. 5.

    Barnhart K. Ectopic pregnancy. N Engl J Med. 2009;361:379–87.

  6. 6.

    Practice Committee of the American Society for Reproductive Medicine. Medical treatment of ectopic pregnancy: a committee opinion. Fertil Steril. 2013;100:638–44.

  7. 7.

    Perkins KM, Boulet SL, Kissin DM, Jamieson DJ, National ART Surveillance (NASS) Group. Risk of ectopic pregnancy associated with assisted reproductive technology in the United States, 2001–2011. Obstet Gynecol. 2015;125:70–8.

  8. 8.

    Yankowitz J, Leake J, Huggins G, Gazaway P, Gates E. Cervical ectopic pregnancy: review of the literature and report of a case treated by single-dose methotrexate therapy. Obstet Gynecol Surv. 1990;45:405–14.

  9. 9.

    Jurkovic D, Hillaby K, Woelfer B, Lawrence A, Salim R, Elson CJ. First trimester diagnosis and management of pregnancies implanted into the lower uterine segment cesarean section scar. Ultrasound Obstet Gynecol. 2003;21:220–7.

  10. 10.

    Seow KM, Huang LW, Lin YH, Lin MY, Tsai YL, Hwang JL. Cesarean scar pregnancy: issues in management. Ultrasound Obstet Gynecol. 2004;23:247–53.

  11. 11.

    Moawad NS, Mahajan ST, Moniz MH, Taylor SE, Hurd WW. Current diagnosis and treatment of interstitial pregnancy. Am J Obstet Gynecol. 2010;202:15–29.

  12. 12.

    Ng S, Hamontri S, Chua I, Chern B, Siow A. Laparoscopic management of 53 cases of cornual ectopic pregnancy. Fertil Steril. 2009;92:448–52.

  13. 13.

    Kirk E, McDonald K, Rees J, Govind A. Intramural ectopic pregnancy: a case and review of the literature. Eur J Obstet Gynecol Reprod Biol. 2013;168:129–33.

  14. 14.

    Khan KS, Wojdyla D, Say L, Gulmezoglu AM, Van Look PF. WHO analysis of causes of maternal death: a systematic review. Lancet. 2006;367:1066–74.

  15. 15.

    Rana P, Kazmi I, Singh R, Afzal M, Al-Abbasi FA, Aseeri A, et al. Ectopic pregnancy: a review. Arch Gynecol Obstet. 2013;288:747–57.

  16. 16.

    Poole A, Haas D, Magann EF. Early abdominal ectopic pregnancies: a systematic review of the literature. Gynecol Obstet Invest. 2012;74:249–60.

  17. 17.

    Barrenetxea G, Barinaga-Rementeria L, Lopez de Larruzea A, Agirregoikoa JA, Mandiola M, Carbonero K. Heterotopic pregnancy: two cases and a comparative review. Fertil Steril. 2007;82:9–15.

  18. 18.

    Clayton HB, Schieve LA, Peterson HB, Jamieson DJ, Reynolds MA, Wright VC. Ectopic pregnancy risk with assisted reproductive technology procedures. Obset Gynecol. 2006;107:595–604.

  19. 19.

    Lin CK, Wen KC, Sung PL, Lin SC, Lai CR, Chao KC, et al. Heterotopic triplet pregnancy with an intrauterine, a tubal, and a cervical gestation following in vitro fertilization and embryo transfer. Taiwan J Obstet Gynecol. 2013;52:287–9.

  20. 20.

    Talbot P, Riveles K. Smoking and reproduction: the oviduct as a target of cigarette smoke. Reprod Biol Endocrinol. 2005;3:52.

  21. 21.

    Shaw JL, Dey SK, Critchley HO, Horne AW. Current knowledge of the aetiology of human tubal ectopic pregnancy. Hum Reprod Update. 2010;16:432–44.

  22. 22.

    Magers T, Talbot P, DiCarlantonio G, Knoll M, Demers D, Tsai I, et al. Cigarette smoke inhalation affects the reproductive system of female hamsters. Reprod Toxicol. 1995;9:513–25.

  23. 23.

    Lyons RA, Saridogan E, Djahanbakhch O. The reproductive significance of human Fallopian tube cilia. Hum Reprod Update. 2006;12:363–72.

  24. 24.

    Jansen RP. Endocrine response in the fallopian tube. Endocr Rev. 1984;5:525–51.

  25. 25.

    Paltieli Y, Eibschitz I, Ziskind G, Ohel G, Silbermann M, Weichselbaum A. High progesterone levels and ciliary dysfunction--a possible cause of ectopic pregnancy. J Assist Reprod Genet. 2000;17:103–6.

  26. 26.

    Jain B, Rubinstein I, Robbins RA, Sisson JH. TNF-alpha and IL-1 beta upregulate nitric oxide-dependent ciliary motility in bovine airway epithelium. Am J Physiol. 1995;268:L911–7.

  27. 27.

    Al-Azemi M, Refaat B, Amer S, Ola B, Chapman N, Ledger W. The expression of inducible nitric oxide synthase in the human fallopian tube during the menstrual cycle and in ectopic pregnancy. Fertil Steril. 2010;94:833–40.

  28. 28.

    Nilsson S, Makela S, Treuter E, Tujague M, Thomsen J, Andersson G, et al. Mechanisms of estrogen action. Physiol Rev. 2001;81:1535–65.

  29. 29.

    Deroo BJ, Korach KS. Estrogen receptors and human disease. J Clin Invest. 2006;116:561–70.

  30. 30.

    Shao R, Feng Y, Zou S, Weijdegård B, Wu G, Brännström M, et al. The role of estrogen in the pathophysiology of tubal ectopic pregnancy. Am J Transl Res. 2012;4:269–78.

  31. 31.

    Shaw JL, Horne AW. The paracrinology of tubal ectopic pregnancy. Mol Cell Endocrinol. 2012;358:216–22.

  32. 32.

    Hvid M, Baczynska A, Deleuran B, Fedder J, Knudsen HJ, Christiansen G, et al. Interleukin-1 is the initiator of Fallopian tube destruction during Chlamydia trachomatis infection. Cell Microbiol. 2007;9:2795–803.

  33. 33.

    Shaw JL, Fitch P, Cartwright J, Entrican G, Schwarze J, Critchley HO, et al. Lymphoid and myeloid cell populations in the non-pregnant human Fallopian tube and in ectopic pregnancy. J Reprod Immunol. 2011;89:84–91.

  34. 34.

    Ulziibat S, Ejima K, Shibata Y, Hishikawa Y, Kitajima M, Fujishita A, et al. Identification of estrogen receptor beta-positive intraepithelial lymphocytes and their possible roles in normal and tubal pregnancy oviducts. Hum Reprod. 2006;21:2281–9.

  35. 35.

    von Rango U, Classen-Linke I, Kertschanska S, Kemp B, Beier HM. Effects of trophoblast invasion on the distribution of leukocytes in uterine and tubal implantation sites. Fertil Steril. 2001;76:116–24.

  36. 36.

    Bouyer J, Coste J, Shojaei T, Pouly JL, Fernandez H, Gerbaud L, et al. Risk factors for ectopic pregnancy: a comprehensive analysis based on a large case–control, population-based study in France. Am J Epidemiol. 2003;157:185–94.

  37. 37.

    Yeko TR, Handler A. The effect of aging on tubal function and ectopic pregnancy. Semin Reprod Endocrinol. 1991;9:215–20.

  38. 38.

    de Bennetot M, Rabischong B, Aublet-Cuvelier B, Belard F, Fernandez H, Bouyer J, et al. Fertility after tubal ectopic pregnancy: results of a population-based study. Fertil Steril. 2012;98:1271–6. e1-3.

  39. 39.

    Mol F, van Mello NM, Strandell A, Strandell K, Jurkovic D, Ross J, et al. Salpingotomy versus salpingectomy in women with tubal pregnancy (ESEP study): an open-label, multicentre, randomised controlled trial. Lancet. 2014;383:1483–9.

  40. 40.

    Butts S, Sammel M, Hummel A, Chittams J, Barnhart K. Risk factor and clinical features of recurrent ectopic pregnancy: a case control study. Fertil Steril. 2003;80:1340–4.

  41. 41.

    Weigert M, Gruber D, Pernicka E, Bauer P, Feichtinger W. Previous tubal ectopic pregnancy raises the incidence of repeated ectopic pregnancies in in vitro fertilization-embryo transfer patients. J Assist Reprod Genet. 2009;26:13–7.

  42. 42.

    Cooper MD, Rapp J, Jeffery-Wiseman C, Barnes RC, Stephens DS. Chlamydia trachomatis infection of human fallopian tube organ cultures. J Gen Microbiol. 1990;136:1109–15.

  43. 43.

    Farquhar CM. Ectopic pregnancy. Lancet. 2005;366:583–91.

  44. 44.

    Aminu MB, Abdullahi K, Dattijo LM. Tubal ectopic gestation associated with genital schistosomiasis: a case report. Afr J Reprod Health. 2014;18:144–6.

  45. 45.

    Haggerty CL, Gottlieb SL, Taylor BD, Low N, Xu F, Ness RB. Risk of sequelae after Chlamydia trachomatis genital infection in women. J Infect Dis. 2010;201:S134–55.

  46. 46.

    Senterman M, Jibodh R, Tulandi T. Histopathologic study of ampullary and isthmic tubal ectopic pregnancy. Am J Obstet Gynecol. 1988;159:939–41.

  47. 47.

    Dun EC, Nezhat CH. Tubal factor infertility: diagnosis and management in the era of assisted reproductive technology. Obstet Gynecol Clin North Am. 2012;39:551–66.

  48. 48.

    Rodgers AK, Goldberg JM, Hammel JP, Falcone T. Tubal anastomosis by robotic compared with outpatient minilaparotomy. Obstet Gynecol. 2007;109:1375–80.

  49. 49.

    Peterson HB, Xia Z, Hughes JM, Wilcox LS, Tylor LR, Trussell J. The risk of pregnancy after tubal sterilization: findings from the U.S. Collaborative Review of Sterilization. Am J Obstet Gynecol. 1996;174:1161–8.

  50. 50.

    Bartz D, Greenberg JA. Sterilization in the United States. Rev Obstet Gynecol. 2008;1:23–32.

  51. 51.

    Xiong X, Buekens P, Wollast E. IUD use and the risk of ectopic pregnancy: a meta-analysis of case–control studies. Contraception. 1995;52:23–34.

  52. 52.

    Furlong LA. Ectopic pregnancy risk when contraception fails. A review J Reprod Med. 2002;47:881–5.

  53. 53.

    Chang HJ, Suh CS. Ectopic pregnancy after assisted reproductive technology: what are the risk factors? Curr Opin Obstet Gynecol. 2010;22:202–7.

  54. 54.

    Li C, Meng CX, Zhao WH, Lu HQ, Shi W, Zhang J. Risk factors for ectopic pregnancy in women with planned pregnancy: a case–control study. Eur J Obstet Gynecol Reprod Biol. 2014;181:176–82.

  55. 55.

    Huang B, Hu D, Qian K, Ai J, Li Y, Jin L, et al. Is frozen embryo transfer cycle associated with a significantly lower incidence of ectopic pregnancy? An analysis of more than 30,000 cycles. Fertil Steril. 2014;102:1345–9.

  56. 56.

    Sahin S, Ozay A, Ergin E, Turkgeldi L, Kürüm E, Ozornek H. The risk of ectopic pregnancy following GnRH agonist triggering compared with hCG triggering in GnRH antagonist IVF cycles. Arch Gynecol Obstet. 2015;291:185–91.

  57. 57.

    Nazari A, Askari HA, Check JH, O’Shaughnessy A. Embryo transfer technique as a cause of ectopic pregnancy in in vitro fertilization. Fertil Steril. 1993;60:919–21.

  58. 58.

    Smith LP, Oskowitz SP, Dodge LE, Hacker MR. Risk of ectopic pregnancy following day-5 embryo transfer compared with day-3 transfer. Reprod Biomed Online. 2013;27:407–13.

  59. 59.

    Fang C, Huang R, Wei LN, Jia L. Frozen-thawed day 5 blastocyst transfer is associated with a lower risk of ectopic pregnancy than day 3 transfer and fresh transfer. Fertil Steril. 2015;103:655–61.

  60. 60.

    Imudia AN, Awonuga AO, Doyle JO, Kaimal AJ, Wright DL, Toth TL, et al. Peak serum estradiol level during controlled ovarian hyperstimulation is associated with increased risk of small for gestational age and preeclampsia in singleton pregnancies after in vitro fertilization. Fertil Steril. 2012;97:1374–9.

  61. 61.

    Tulandi T, Al-Jaroudi D. Interstitial pregnancy: results generated from the Society of Reproductive Surgeons Registry. Obstet Gynecol. 2004;103:47–50.

  62. 62.

    Talbot K, Simpson R, Price N, Jackson SR. Heterotopic pregnancy. J Obstet Gynaecol. 2011;31:7–12.

  63. 63.

    World Health Organization. A multinational case–control study of ectopic pregnancy. The World Health Organization’s Special Programme of Research, Development and Research Training in Human Reproduction: Task Force on Intrauterine Devices for Fertility Regulation. Clin Reprod Fertil. 1985;3:131–43.

  64. 64.

    Rotas MA, Haberman S, Levgur M. Cesarean scar ectopic pregnancies: etiology, diagnosis, and management. Obstet Gynecol. 2006;107:1373–81.

  65. 65.

    Maymon R, Halperin R, Mendlovic S, Schneider D, Herman A. Ectopic pregnancies in a caesarean scar: review of the medical approach to an iatrogenic complication. Hum Reprod Update. 2004;10:515–23.

  66. 66.

    Pisarska MD, Carson SA. Incidence and risk factors for ectopic pregnancy. Clin Obstet Gynecol. 1999;42:2–8.

  67. 67.

    Ushakov FB, Elchalal U, Aceman PJ, Schenker JG. Cervical pregnancy: past and future. Obstet Gynecol Surv. 1997;52:45–59.

  68. 68.

    Bennett S, Waterstone J, Parsons J, Creighton S. Two cases of cervical pregnancy following in vitro fertilization and embryo transfer to the lower uterine cavity. J Assist Reprod Genet. 1993;10:100–3.

  69. 69.

    Molinaro TA, Barnhart KT. Ectopic pregnancies in unusual locations. Semin Reprod Med. 2007;25:123–30.

  70. 70.

    Deshpande N, Mathers A, Acharya U. Broad ligament twin pregnancy following in-vitro fertilization. Hum Reprod. 1999;14:852–4.

  71. 71.

    Kirk E, Condous G, Bourne T. Pregnancies of unknown location. Best Pract Res Clin Obstet Gynaecol. 2009;23:493–9.

  72. 72.

    Fournier T, Guibourdenche J, Evain-Brion D. Review: hCGs: Different sources of production, different glycoforms and functions. Placenta. 2015;36:S60–5.

  73. 73.

    Morse CB, Sammel MD, Shaunik A, Allen-Taylor L, Oberfoell NL, Takacs P, et al. Performance of human chorionic gonadotropin curves in women at risk for ectopic pregnancy: exceptions to the rules. Fertil Steril. 2012;97:101–6.

  74. 74.

    Chung K, Sammel MD, Coutifaris C, Chalian R, Lin K, Castelbaum AJ, et al. Defining the rise of serum HCG in viable pregnancies achieved through use of IVF. Hum Reprod. 2006;21:823–8.

  75. 75.

    Rausch ME, Barnhart KT. Serum biomarkers for detecting ectopic pregnancy. Clin Obstet Gynecol. 2012;55:418–23.

  76. 76.

    Verhaegen J, Gallos ID, van Mello NM, Abdel-Aziz M, Takwoingi Y, Harb H, et al. Accuracy of single progesterone test to predict early pregnancy outcome in women with pain or bleeding: meta-analysis of cohort studies. BMJ. 2012;345, e6077.

  77. 77.

    Long CA, Lincoln SR, Whitworth NS, Cowan BD. Serum progesterone predicts abnormal gestations in clomiphene citrate conception cycles as well as in spontaneous conception cycles. Fertil Steril. 1994;61:838–42.

  78. 78.

    Fernandez H, Gervaise A. Ectopic pregnancies after infertility treatment: modern diagnosis and therapeutic strategy. Hum Reprod Update. 2004;10:503–13.

  79. 79.

    Guha S, Ayim F, Ludlow J, Sayasneh A, Condous G, Kirk E, et al. Triaging pregnancies of unknown location: the performance of protocols based on single serum progesterone or repeated serum hCG levels. Hum Reprod. 2014;29:938–45.

  80. 80.

    Mol BW, Lijmer JG, Ankum WM, van der Veen F, Bossuyt PM. The accuracy of single serum progesterone measurement in the diagnosis of ectopic pregnancy: a meta-analysis. Hum Reprod. 1998;13:3220.

  81. 81.

    Senapati S, Barnhart KT. Biomarkers for ectopic pregnancy and pregnancy of unknown location. Fertil Steril. 2013;99:1107–16.

  82. 82.

    Takacs P, Jaramillo S, Datar R, Williams A, Olczyk J, Barnhart K. Placental mRNA in maternal plasma as a predictor of ectopic pregnancy. Int J Gynaecol Obstet. 2012;117:131–3.

  83. 83.

    Mueller MD, Raio L, Spoerri S, Ghezzi F, Dreher E, Bersinger NA. Novel placental and nonplacental serum markers in ectopic versus normal intrauterine pregnancy. Fertil Steril. 2004;81:1106–11.

  84. 84.

    Kadar N, DeVore G, Romero R. Discriminatory hCG zone: its use in the sonographic evaluation for ectopic pregnancy. Obstet Gynecol. 1981;58:156–61.

  85. 85.

    Mehta TS, Levine D, Beckwith B. Treatment of ectopic pregnancy: is a human chorionic gonadotropin level of 2000 mIU/mL a reasonable threshold? Radiology. 1997;205:569–73.

  86. 86.

    Doubilet PM, Benson CB. Further evidence against the reliability of the human chorionic gonadotropin discriminatory level. J Ultrasound Med. 2011;30:1637–42.

  87. 87.

    Ko JK, Cheung VY. Time to revisit the human chorionic gonadotropin discriminatory level in the management of pregnancy of unknown location. J Ultrasound Med. 2014;33:465–71.

  88. 88.

    Moschos E, Twickler DM. Endometrial thickness predicts intrauterine pregnancy in patients with pregnancy of unknown location. Ultrasound Obstet Gynecol. 2008;32:929–34.

  89. 89.

    Mehta TS, Levine D, McArdle CR. Lack of sensitivity of endometrial thickness in predicting the presence of an ectopic pregnancy. J Ultrasound Med. 1999;18:117–22.

  90. 90.

    Levgur M, Tsai T, Kang K, Feldman J, Kory LA. Endometrial stripe thickness in tubal and intrauterine pregnancies. Fertil Steril. 2000;74:889–91.

  91. 91.

    Sickler GK, Chen PC, Dubinsky TJ, Maklad N. Free echogenic pelvic fluid: correlation with hemoperitoneum. J Ultrasound Med. 1998;17:431–5.

  92. 92.

    Kirk E, Bottomley C, Bourne T. Diagnosing ectopic pregnancy and current concepts in the management of pregnancy of unknown location. Hum Reprod Update. 2014;20:250–61.

  93. 93.

    Scalea TM, Rodriguez A, Chiu WC, Brenneman FD, Fallon Jr WF, Kato K, et al. Focused Assessment with Sonography for Trauma (FAST): results from an international consensus conference. J Trauma. 1999;46:466–72.

  94. 94.

    Society for Assisted Reproductive Technology, American Society for Reproductive Medicine. Assisted reproductive technology in the United States: 2001 results generated from the American Society for Reproductive Medicine/Society for Assisted Reproductive Technology registry. Fertil Steril. 2007;87:1253–66.

  95. 95.

    Brown DL, Doubilet PM. Transvaginal sonography for diagnosing ectopic pregnancy: positivity criteria and performance characteristics. J Ultrasound Med. 1994;13:259–66.

  96. 96.

    Pellerito JS, Taylor KJ, Quedens-Case C, Hammers LW, Scoutt LM, Ramos IM, et al. Ectopic pregnancy: evaluation with endovaginal color flow imaging. Radiology. 1992;183:407–11.

  97. 97.

    Frates MC, Visweswaran A, Laing FC. Comparison of tubal ring and corpus luteum echogenicities: a useful differentiating characteristic. J Ultrasound Med. 2001;20:27–31.

  98. 98.

    Doubilet PM. Ultrasound evaluation of the first trimester. Radiol Clin North Am. 2014;52:1191–9.

  99. 99.

    Bourdel N, Roman H, Gallot D, Lenglet Y, Dieu V, Juillard D. Interstitial Pregnancy. Ultrasonographic diagnosis and contribution of MRI: a case report. Gynecol Obstet Fertil. 2007;35:121–4.

  100. 100.

    Timor-Tritch IE, Monteagudo A, Matera C, Veit CR. Sonographic evolution of cornual pregnancies treated without surgery. Obstet Gynecol. 1992;79:1044–9.

  101. 101.

    Ackerman TE, Levi CS, Dashefsky SM, Holt SC, Lindsay DJ. Interstitial line: sonographic finding in interstitial (cornual) ectopic pregnancy. Radiology. 1993;189:83–7.

  102. 102.

    Hofmann HM, Urdl W, Höfler H, Hönigl W, Tamussino K. Cervical pregnancy: case reports and current concepts in diagnosis and treatment. Arch Gynecol Obstet. 1987;241:63–9.

  103. 103.

    Jurkovic D, Hacket E, Campbell S. Diagnosis and treatment of early cervical pregnancy. A review and a report of two cases treated conservatively. Ultrasound Obstet Gynecol. 1996;8:373–80.

  104. 104.

    Vial Y, Petignat P, Hohlfeld P. Pregnancy in a cesarean scar. Ultrasound Obstet Gynecol. 2000;16:592–3.

  105. 105.

    Katano K, Ikuta K, Matsubara H, Oya N, Nishio M, Suzumori K. A case of successful conservative chemotherapy for intramural pregnancy. Fertil Steril. 1999;72:744–6.

  106. 106.

    Jurkovic D, Mavrelos D. Catch me if you scan: ultrasound diagnosis of ectopic pregnancy. Ultrasound Obstet Gynecol. 2007;30:1–7.

  107. 107.

    Comstock C, Huston K, Lee W. The ultrasonographic appearance of ovarian ectopic pregnancies. Obstet Gynecol. 2005;105:42–5.

  108. 108.

    Ghi T, Banfi A, Marconi R, Iaco PD, Pilu G, Aloysio DD, et al. Three-dimensional sonographic diagnosis of ovarian pregnancy. Ultrasound Obstet Gynecol. 2005;26:102–4.

  109. 109.

    Allibone GW, Fagan CJ, Porter SC. The sonographic features of intra-abdominal pregnancy. J Clin Ultrasound. 1981;9:383–7.

  110. 110.

    Gerli S, Rossetti D, Baiocchi G, Clerici G, Unfer V, Di Renzo GC. Early ultrasonographic diagnosis and laparoscopic treatment of abdominal pregnancy. Eur J Obstet Gynecol Reprod Biol. 2004;113:103–5.

  111. 111.

    Reid S, Condous G. Is there a need to definitively diagnose the location of a pregnancy of unknown location? The case for “no.”. Fertil Steril. 2012;98:1085–90.

  112. 112.

    Barnhart KT, Katz I, Hummel A, Gracia CR. Presumed diagnosis of ectopic pregnancy. Obstet Gynecol. 2002;100:505–10.

  113. 113.

    Rubal L, Chung K. Do you need to definitively diagnose the location of a pregnancy of unknown location? The case for “yes.”. Fertil Steril. 2012;98:1078–84.

  114. 114.

    Shaunik A, Kulp J, Appleby DH, Sammel MD, Barnhart KT. Utility of dilation and curettage in the diagnosis of pregnancy of unknown location. Am J Obstet Gynecol. 2011;204:130. e1-6.

  115. 115.

    Stovall TG, Ling FW. Ectopic pregnancy. Diagnostic and therapeutic algorithms minimizing surgical intervention. J Reprod Med. 1993;38:807–12.

  116. 116.

    Brady P, Imudia AN, Awonuga AO, Wright DL, Styer AK, Toth TL. Pregnancies of unknown location after in vitro fertilization: minimally invasive management with Karman cannula aspiration. Fertil Steril. 2014;101:420–6.

  117. 117.

    Mertz HL, Yalcinkaya TM. Early diagnosis of ectopic pregnancy. Does use of a strict algorithm decrease the incidence of tubal rupture? J Reprod Med. 2001;46:29–33.

  118. 118.

    Ailawadi M, Lorch SA, Barnhart KT. Cost-effectiveness of presumptively medically treating women at risk for ectopic pregnancy compared with first performing a dilatation and curettage. Fertil Steril. 2005;83:376–82.

  119. 119.

    Ries A, Singson P, Bidus M, Barnes JG. Use of the endometrial pipelle in the diagnosis of early abnormal gestations. Fertil Steril. 2000;74:593–5.

  120. 120.

    Barnhart KT, Gracia CR, Reindl B, Wheeler JE. Usefulness of pipelle endometrial biopsy in the diagnosis of women at risk for ectopic pregnancy. Am J Obstet Gynecol. 2003;188:906–9.

  121. 121.

    Rivera V, Nguyen PH, Sit A. Change in quantitative human chorionic gonadotropin after manual vacuum aspiration in women with pregnancy of unknown location. Am J Obstet Gynecol. 2009;200:e56–9.

  122. 122.

    Beric B, Kupresanin M, Hulka JF. The Karman catheter: a preliminary evaluation as an instrument for termination of pregnancies up to twelve weeks of gestation. Am J Obstet Gynecol. 1972;114:273–5.

  123. 123.

    Suarez RA, Grimes DA, Majmudar B, Benigno BB. Diagnostic endometrial aspiration with the Karman cannula. J Reprod Med. 1983;28:41–4.

  124. 124.

    Tansathit T, Chichareon S, Tocharoenvanich S, Dechsukhum C. Diagnostic evaluation of Karman endometrial aspiration in patients with abnormal uterine bleeding. J Obstet Gynaecol Res. 2005;31(5):480–5.

  125. 125.

    Alexander JM, Rose DJ, Varner E, Austin JM. Treatment of the small unruptured ectopic pregnancy: A cost analysis of methotrexate versus laparoscopy. Obstet Gynecol. 1996;88:123–6.

  126. 126.

    Hajenius PJ, Engelsbel S, Mol BW, Van der Veen F, Ankum WM, Bossuyt PM. Randomised trial of systemic methotrexate versus laparoscopic salpingostomy in tubal pregnancy. Lancet. 1997;350:774–9.

  127. 127.

    Alleyassin A, Khademia A, Aghahosseini M, Safdarian L, Badenoosh B, Hamed EA. Comparison of success rates in the medical management of ectopic pregnancy with single dose and multi dose administration of methotrexate: a prospective, randomized clinical trial. Fertil Steril. 2006;85:1661–6.

  128. 128.

    Pisarska MD, Carson SA, Buster JE. Ectopic pregnancy. Lancet. 1998;351:1115–20.

  129. 129.

    Fernandez H, Pauthier S, Doumerc S, Lelaidier C, Olivennes F, Ville Y, et al. Ultrasound-guided injection of methotrexate versus laparoscopic salpingotomy in ectopic pregnancy. Fertil Steril. 1995;63:25–9.

  130. 130.

    Sadan O, Ginath S, Debby A, Rotmensch S, Golan A, Zakut H, et al. Methotrexate versus hyperosmolar glucose in the treatment of extrauterine pregnancy. Arch Gynecol Obstet. 2001;265:82–4.

  131. 131.

    Sand PK, Stubblefield PA, Ory SJ. Methotrexate inhibition of normal trophoblasts in vitro. Am J Obstet Gynecol. 1986;155:324–9.

  132. 132.

    Tanaka T, Hayashi H, Kutsuzawa T, Fujimoto S, Ichinoe K. Treatment of interstitial ectopic pregnancy with methotrexate: report of a successful case. Fertil Steril. 1982;37:851–4.

  133. 133.

    Barnhart KT, Hummel AC, Sammel MD, Menon S, Jain J, Chakhtoura N. Use of “2 dose” regimen of methotrexate to treat ectopic pregnancy. Fertil Steril. 2007;87:250–6.

  134. 134.

    Menon S, Colins J, Barnhart KT. Establishing a human chorionic gonadotropin cutoff to guide methotrexate treatment of ectopic pregnancy: a systematic review. Fertil Steril. 2007;87:481–4.

  135. 135.

    Lipscomb GH, Bran D, McCord ML, Portera JC, Ling FW. Analysis of three hundred fifteen ectopic pregnancies treated with single dose methotrexate. Am J Obstet Gynecol. 1998;178:1354–8.

  136. 136.

    American College of Obstetricians and Gynecologists. ACOG Practice Bulletin No. 94: Medical management of ectopic pregnancy. Obstet Gynecol. 2008;111:1479–85.

  137. 137.

    Barnhart KT, Gosman G, Ashby R, Sammel M. The medical management of ectopic pregnancy: a meta-analysis comparing “single dose and multidose” regimens. Obstet Gynecol. 2003;101:778–84.

  138. 138.

    Lipscomb GH. Comparison of multidose and single dose methotrexate protocols for the treatment of ectopic pregnancy. Am J Obstet Gynecol. 2005;192:1844–8.

  139. 139.

    Lipscomb GH, Stovall TG, Ling FW. Nonsurgical Treatment of ectopic pregnancy. N Engl J Med. 2000;343:1325–9.

  140. 140.

    Guvendag Guven ES, Dilbaz S, Dilbaz B, Aykan Yildirim B, Akdag D, Haberal A. Comparison of single and multiple dose methotrexate therapy for unruptured tubal ectopic pregnancy: a prospective randomized study. Acta Obstet Gynecol Scand. 2010;89:889–95.

  141. 141.

    Gungorduk K, Asicioglu O, Yildirim G, Gungorduk OC, Besimoglu B, Ark C. Comparison of single dose and two dose methotrexate protocols for the treatment of unruptured ectopic pregnancy. J Obstet Gynaecol. 2011;31:330–4.

  142. 142.

    Dudley P, Heard MJ, Sangi-Haghpeykar H, Carson SA, Buster JE. Characterizing ectopic pregnancies that rupture despite treatment with methotrexate. Fertil Steril. 2004;82:1374–8.

  143. 143.

    Alkatout I, Honemeyer U, Strauss A, Tinelli A, Malvasi A, Jonat W, et al. Clinical diagnosis and treatment of ectopic pregnancy. Obstet Gynecol Surv. 2013;68:571–81.

  144. 144.

    Shapiro HI, Adler DH. Excision of an ectopic pregnancy through the laparoscope. Am J Obstet Gynecol. 1973;117:290–1.

  145. 145.

    Lundorff P, Thorburn J, Hahlin M, Källfelt B, Lindblom B. Laparoscopic surgery in ectopic pregnancy. A randomized trial versus laparotomy. Acta Obstet Gynecol Scand. 1991;70:343–8.

  146. 146.

    Vermesh M, Silva PD, Rosen GF, Stein AL, Fossum GT, Sauer MV. Management of unruptured ectopic gestation by linear salpingostomy: a prospective randomized clinical trial of laparoscopy versus laparotomy. Obstet Gynecol. 1989;73:400–4.

  147. 147.

    Murphy AA, Nager CW, Wujek JJ, Kettel LM, Torp VA, Chin HG. Operative Laparoscopy versus laparotomy for the management of ectopic pregnancy: a prospective trial. Fertil Steril. 1992;57:1180–5.

  148. 148.

    Hajenius PJ, Mol F, Bossuyt PMM, Ankum WM, van der Veen F. Interventions for tubal ectopic pregnancy, The cochrane library. 2007. CD000324.

  149. 149.

    Yao M, Tulandi T. Current status of surgical and nonsurgical management of ectopic pregnancy. Fertil Steril. 1997;67:421–33.

  150. 150.

    Oshea RT, Thompson GR, Harding A. Intra-amniotic methotrexate versus CO2 laser laparoscopic salpingotomy in the management of tubal ectopic pregnancy: a prospective randomized trial. Fertil Steril. 1994;62:876–8.

  151. 151.

    Maymon R, Shulman A. Controversies and problems in the current management of tubal pregnancy. Human Reprod. 1996;2:541–51.

  152. 152.

    DeCherney AH, Diamond MP. Laparoscopic salpingostomy for ectopic pregnancy. Obstet Gynecol. 1987;70:948–50.

  153. 153.

    Seifer DB, Diamond MP, DeCherney AH. Persistent ectopic pregnancy. Obstet Gynecol Clin North Am. 1991;18:153–9.

  154. 154.

    Graczykowski JW, Mishell Jr DR. Methotrexate prophylaxis for persistent ectopic pregnancy after conservative treatment by salpingostomy. Obstet Gynecol. 1997;89:118–22.

  155. 155.

    Akira S, Negishi Y, Abe T, Ichikawa M, Takeshita T. Prophylactic intratubal injection of methotrexate after linear salpingostomy for prevention of persistent ectopic pregnancy. J Obstet Gynaecol Res. 2008;34:885–9.

  156. 156.

    Elson J, Tailor A, Banerjee S, Salim R, Hillaby K, Jurkovic D. Expectant management of tubal ectopic pregnancy: prediction of successful outcome using decision tree analysis. Ultrasound Obstet Gynecol. 2004;23:552–6.

  157. 157.

    Korhonen J, Stenman U-H, Ylostalo P. Serum human chorionic gonadotropin dynamics during spontaneous resolution of ectopic pregnancy. Fertil Steril. 1994;61:632–6.

  158. 158.

    Di Luigi G, Patacchiola F, La Posta V, Bonitatibus A, Ruggeri G, Carta G. Early ovarian pregnancy diagnosed by ultrasound and successfully treated with multidose methotrexate. A case report. Clin Exp Obstet Gynecol. 2012;39:390–3.

  159. 159.

    Kiran G, Guven AM, Köstü B. Systemic medical management of ovarian pregnancy. Int J Gynaecol Obstet. 2005;91:177–8.

  160. 160.

    Habbu J, Read MD. Ovarian pregnancy successfully treated with methotrexate. J Obstet Gynaecol. 2006;26:587–8.

  161. 161.

    Ayakannu T, Rogers J, Wordsworth S, Jayagopal N, Vine S. Conservative laparoscopic approach with systemic medical management of an ovarian ectopic gestation. J Obstet Gynaecol. 2007;27:449–50.

  162. 162.

    Mittal S, Dadhwal V, Baurasi P. Successful medical management of ovarian pregnancy. Int J Gynaecol Obstet. 2003;80:309–10.

  163. 163.

    Pagidas K, Frishman GN. Nonsurgical management of primary ovarian pregnancy with transvaginal ultrasound-guided local administration of methotrexate. J Minim Invasive Gynecol. 2013;20:252–4.

  164. 164.

    Joseph RJ, Irvine LM. Ovarian ectopic pregnancy: aetiology, diagnosis, and challenges in surgical management. J Obstet Gynaecol. 2012;32:472–4.

  165. 165.

    Odejinmi F, Rizzuto MI, Macrae R, Olowu O, Hussain M. Diagnosis and laparoscopic management of 12 consecutive cases of ovarian pregnancy and review of literature. J Minim Invasive Gynecol. 2009;16:354–9.

  166. 166.

    Nadarajah S, Sim LN, Lo SF. Laparoscopic management of an ovarian pregnancy. Singapore Med J. 2002;43:95–6.

  167. 167.

    Eskandar O. Conservative laparoscopic management of a case of ruptured ovarian ectopic pregnancy by using a Harmonic scalpel. J Obstet Gynaecol. 2010;30:67–9.

  168. 168.

    Ginsburg ES, Frates MC, Rein MS, Fox JH, Hornstein MD, Friedman AJ. Early diagnosis and treatment of cervical pregnancy in an in vitro fertilization program. Fertil Steril. 1994;61:966–9.

  169. 169.

    Weibel HS, Alserri A, Reinhold C, Tulandi T. Multidose methotrexate treatment of cervical pregnancy. J Obstet Gynaecol Can. 2012;34:359–62.

  170. 170.

    Zakaria MA, Abdallah ME, Shavell VI, Berman JM, Diamond MP, Kmak DC. Conservative management of cervical ectopic pregnancy: utility of uterine artery embolization. Fertil Steril. 2011;95:872–6.

  171. 171.

    Jeng CJ, Ko ML, Shen J. Transvaginal ultrasound-guided treatment of cervical pregnancy. Obstet Gynecol. 2007;109:1076–82.

  172. 172.

    Hung TH, Shau WY, Hsieh TT, Hsu JJ, Soong YK, Jeng CJ. Prognostic factors for an unsatisfactory primary methotrexate treatment of cervical pregnancy: a quantitative review. Hum Reprod. 1998;13:2636–42.

  173. 173.

    Trojano G, Colafiglio G, Saliani N, Lanzillotti G, Cicinelli E. Successful management of a cervical twin pregnancy: neoadjuvant systemic methotrexate and prophylactic high cervical cerclage before curettage. Fertil Steril. 2009;91:935.

  174. 174.

    Fylstra DL. Cervical pregnancy: 13 cases treated with suction curettage and balloon tamponade. Am J Obstet Gynecol. 2014;210:581.

  175. 175.

    Mesogitis S, Pilalis A, Daskalakis G, Papantoniou N, Antsaklis A. Management of early viable cervical pregnancy. BJOG. 2005;112:409.

  176. 176.

    Frates MC, Benson CB, Doubilet PM, Di Salvo DN, Brown DL, Laing FC, et al. Cervical ectopic pregnancy: Results of conservative treatment. Radiology. 1994;191:773–5.

  177. 177.

    Wang Y, Xu B, Dai S, Zhang Y, Duan Y, Sun C. An efficient conservative treatment modality for cervical pregnancy: angiographic uterine artery embolization followed by immediate curettage. Am J Obstet Gynecol. 2011;204:31.

  178. 178.

    Trambert JJ, Einstein M, Banks E, Frost A, Goldberg G. Uterine artery embolization in the management of vaginal bleeding from cervical pregnancy. J Reprod Med. 2005;50:844–50.

  179. 179.

    Einenkel J, Stumpp P, Kosling S, Horn LC, Hockel M. A misdiagnosed case of caesarean scar pregnancy. Arch Gynecol Obstet. 2005;271:178–81.

  180. 180.

    Ash A, Smith A, Maxwell D. Caesarean scar pregnancy. Br J Obstet Gynecol. 2007;114:253–63.

  181. 181.

    Michaels AY, Washburn EE, Pocius KD, Benson CB, Doubilet PM, Carusi DA. Outcome of cesarean scar pregnancies diagnosed sonographically in the first trimester. J Ultrasound Med. 2015;34:595–9.

  182. 182.

    Herman A, Weinraub Z, Avrech O, Mon R, Ron-El R, Bukovsky Y. Follow up and outcome of isthmic pregnancy located in a previous caesarean section scar. Br J Obstet Gynaecol. 1995;102:839–41.

  183. 183.

    Timor-Tritsch IE, Khatib N, Monteagudo A, Ramos J, Berg R, Kovács S. Cesarean scar pregnancies: experience of 60 cases. J Ultrasound Med. 2015;34:601–10.

  184. 184.

    Timor-Tritsch IE, Monteagudo A, Santos R, Tsymbal T, Pineda G, Arslan AA. The diagnosis, treatment, and follow-up of cesarean scar pregnancy. Am J Obstet Gynecol. 2012;207:44.

  185. 185.

    Wang JH, Xu KH, Lin J, Xu JY, Wu RJ. Methotrexate therapy for cesarean section scar pregnancy with and without suction curettage. Fertil Steril. 2009;92:1208–13.

  186. 186.

    Fylstra DL. Hysteroscopy and suction evacuation of cesarean scar pregnancies: a case report and review. J Obstet Gynaecol Res. 2014;40:853–7.

  187. 187.

    Reyftmann L, Vernhet H, Boulot P. Management of massive uterine bleeding in a cesarean scar pregnancy. Int J Gynaecol Obstet. 2005;89:154–5.

  188. 188.

    Zhang B, Jiang ZB, Huang MS, Guan SH, Zhu KS, Qian JS, et al. Uterine artery embolization combined with methotrexate in the treatment of cesarean scar pregnancy: results of a case series and review of the literature. J Vasc Interv Radiol. 2012;23:1582–8.

  189. 189.

    Mollo A, Conforti A, Alviggi C, De Placido G. Successful direct bipolar resection of 6th week cesarean scar pregnancy: case report and literature review. Eur J Obstet Gynecol Reprod Biol. 2014;179:229–31.

  190. 190.

    Wang CJ, Chao AS, Yuen LT, Wang CW, Soong YK, Lee CL. Endoscopic management of cesarean scar pregnancy. Fertil Steril. 2006;85:494.

  191. 191.

    Wang G, Liu X, Bi F, Yin L, Sa R, Wang D, et al. Evaluation of the efficacy of laparoscopic resection for the management of exogenous cesarean scar pregnancy. Fertil Steril. 2014;101:1501–7.

  192. 192.

    Marotta ML, Donnez J, Squifflet J, Jadoul P, Darii N, Donnez O. Laparoscopic repair of post-cesarean section uterine scar defects diagnosed in nonpregnant women. J Minim Invasive Gynecol. 2013;20:386–91.

  193. 193.

    Siedhoff MT, Schiff LD, Moulder JK, Toubia T, Ivester T. Robotic-assisted laparoscopic removal of cesarean scar ectopic and hysterotomy revision. Am J Obstet Gynecol. 2015;212:681.

  194. 194.

    Fylstra DL. Ectopic pregnancy within a cesarean scar: a review. Obstet Gynecol Surv. 2002;57:537–43.

  195. 195.

    Berhie SH, Molina RL, Davis MR, Anchan RM, Wang KC. Beware the scar: Laparoscopic hysterectomy for 7-week cesarean delivery scar implantation pregnancy. Am J Obstet Gynecol. 2015;212:247.

  196. 196.

    Jermy K, Thomas J, Doo A, Bourne T. The conservative management of interstitial pregnancy. BJOG. 2004;111:1283.

  197. 197.

    Tamarit G, Lonjedo E, González M, Tamarit S, Domingo S, Pellicer A. Combined use of uterine artery embolization and local methotrexate injection in interstitial ectopic pregnancies with poor prognosis. Fertil Steril. 2010;1:93–1348.

  198. 198.

    Deruelle P, Lucot JP, Lions C, Robert Y. Management of interstitial pregnancy using selective uterine artery embolization. Obstet Gynecol. 2005;106:1165–7.

  199. 199.

    Zhang X, Liu X, Fan H. Interstitial pregnancy and transcervical curettage. Obstet Gynecol. 2004;104:1193–5.

  200. 200.

    Fritz RB, Rosenblum N, Gaither K, Sherman A, McCalla A. Successful Laparoscopically Assisted Transcervical Suction Evacuation of Interstitial Pregnancy following Failed Methotrexate Injection in a Community Hospital Setting. Case Rep Obstet Gynecol. 2014. doi:10.1155/2014/695293.

  201. 201.

    Ross R, Lindheim SR, Olive DL, Pritts EA. Cornual gestation: a systematic literature review and two case reports of a novel treatment regimen. J Minim Invasive Gynecol. 2006;13:74–8.

  202. 202.

    Moon HS, Choi YJ, Park YH, Kim SG. New simple endoscopic operations for interstitial pregnancies. Am J Obstet Gynecol. 2000;182(1 Pt 1):114–21.

  203. 203.

    Pasic R, Wolfe WM. Laparoscopic diagnosis and treatment of interstitial ectopic pregnancy: a case report. Am J Obstet Gynecol. 1990;163:587–8.

  204. 204.

    Tulandi T, Vilos G, Gomel V. Laparoscopic treatment of interstitial pregnancy. Obstet Gynecol. 1995;85:465–7.

  205. 205.

    Grobman WA, Milad MP. Conservative laparoscopic management of a large cornual ectopic pregnancy. Hum Reprod. 1998;13:2002–4.

  206. 206.

    Takeda A, Koyama K, Imoto S, Mori M, Sakai K, Nakamura H. Successful management of interstitial pregnancy with fetal cardiac activity by laparoscopic-assisted cornual resection with preoperative transcatheter uterine artery embolization. Arch Gynecol Obstet. 2009;280:305–8.

  207. 207.

    Bannon K, Fernandez C, Rojas D, Levine EM, Locher S. Diagnosis and management of intramural ectopic pregnancy. J Minim Invasive Gynecol. 2013;20:697–700.

  208. 208.

    Ko HS, Lee Y, Lee HJ, Park IY, Chung DY, Kim SP, et al. Sonographic and MR findings in 2 cases of intramural pregnancy treated conservatively. J Clin Ultrasound. 2006;34:356–60.

  209. 209.

    Bouzari Z, Keshani M, Yazdani S, Barat S, Zinalzadeh M. Intramural pregnancy. J Obstet Gynaecol. 2010;30:195–6.

  210. 210.

    Ong C, Su LL, Chia D, Choolani M, Biswas A. Sonographic diagnosis and successful medical management of an intramural ectopic pregnancy. J Clin Ultrasound. 2010;38:320–4.

  211. 211.

    Wang S, Dong Y, Meng X. Intramural ectopic pregnancy: treatment using uterine artery embolization. J Minim Invasive Gynecol. 2013;20:241–3.

  212. 212.

    Wu PJ, Han CM, Wang CJ, Lee CL. Early detection and minimally invasive management of intramural pregnancy. J Minim Invasive Gynecol. 2013;20:123–6.

  213. 213.

    Nabeshima H, Nishimoto M, Utsunomiya H, Arai M, Ugajin T, Terada Y, et al. Total laparoscopic conservative surgery for an intramural ectopic pregnancy. Diagn Ther Endosc. 2010. doi:10.1155/2010/504062.

  214. 214.

    Beddock R, Naepels P, Gondry C, Besserve P, Camier B, Boulanger JC, et al. Diagnosis and current concepts of management of advanced abdominal pregnancy. Gynecol Obstet Fertil. 2004;32:55.

  215. 215.

    Hreshchyshyn M, Bogen B, Loughran C. What is the actual present-day management of the placenta in late abdominal pregnancies? Am J Obstet Gynecol. 1961;81:302–17.

  216. 216.

    Rahaman J, Berkowitz R, Mitty H, Gaddipati S, Brown B, Nezhat F. Minimally invasive management of an advanced abdominal pregnancy. Obstet Gynecol. 2004;103(5 Pt 2):1064.

  217. 217.

    Bertrand G, Le Ray C, Simard-Emond L, Dubois J, Leduc L. Imaging in the management of abdominal pregnancy: a case report and review of the literature. J Obstet Gynaecol Can. 2009;31:57–62.

  218. 218.

    Shaw SW, Hsu JJ, Chueh HY, Han CM, Chen FC, Chang YL, et al. Management of primary abdominal pregnancy: twelve years of experience in a medical centre. Acta Obstet Gynecol Scand. 2007;86:1058–62.

  219. 219.

    Cardosi RJ, Nackley AC, Londono J, Hoffman MS. Embolization for advanced abdominal pregnancy with a retained placenta. A case report. J Reprod Med. 2002;47:861.

  220. 220.

    Huang K, Song L, Wang L, Gao Z, Meng Y, Lu Y. Advanced abdominal pregnancy: an increasingly challenging clinical concern for obstetricians. Int J Clin Exp Pathol. 2014;7:5461–72.

  221. 221.

    Vingnali M, Busacca M, Brigante C, Doldi N, Spagnolo D, Belloni C. Abdominal pregnancy as a result of gamete intrafallopian transfer (GIFT) and subsequent treatment with methotrexate: case report. Int J Fertil. 1990;35:280–3.

  222. 222.

    Giannopoulos T, Katesmark M. Ruptured tubal ectopic pregnancy with secondary implantation in the pouch of Douglas. J Obstet Gynaecol. 2004;24:199–200.

  223. 223.

    Crespo R, Campillos JM, Villacampa A, Madani B, Navarro R, Tobajas JJ. Successful methotrexate treatment of an abdominal pregnancy in the pouch of Douglas. Clin Exp Obstet Gynecol. 2008;35:289–90.

  224. 224.

    Goldstein JS, Ratts VS, Philpott T, Dahan MH. Risk of surgery after use of potassium chloride for treatment of tubal heterotopic pregnancy. Obstet Gynecol. 2006;107(2 Pt 2):506–8.

  225. 225.

    Louis-Sylvestre C, Morice P, Chapron C, Dubuisson JB. The role of laparoscopy in the diagnosis and management of heterotopic pregnancies. Hum Reprod. 1997;12:1100.

  226. 226.

    Soriano D, Shrim A, Seidman DS, Goldenberg M, Mashiach S, Oelsner G. Diagnosis and treatment of heterotopic pregnancy compared with ectopic pregnancy. J Am Assoc Gynecol Laparosc. 2002;9:352–8.

  227. 227.

    Qiong Z, Yanping L, Deep JP, Lin Z. Treatment of cornual heterotopic pregnancy via selective reduction without feticide drug. J Minim Invasive Gynecol. 2011;18:766–8.

  228. 228.

    Prorocic M, Vasiljevic M, Tasic L, Smiljkovic O. Treatment of early heterotopic interstitial (cornual) gestation with subsequent delivery of an intrauterine pregnancy--case report. Clin Exp Obstet Gynecol. 2012;39:396–8.

  229. 229.

    Eom JM, Choi JS, Ko JH, Lee JH, Park SH, Hong JH, et al. Surgical and obstetric outcomes of laparoscopic management for women with heterotopic pregnancy. J Obstet Gynaecol Res. 2013;39:1580–6.

  230. 230.

    Ugurlucan FG, Bastu E, Dogan M, Kalelioglu I, Alanya S, Has R. Management of cesarean heterotopic pregnancy with transvaginal ultrasound-guided potassium chloride injection and gestational sac aspiration, and review of the literature. J Minim Invasive Gynecol. 2012;19:671–3.

  231. 231.

    Kim JW, Park HM, Lee WS, Yoon TK. What is the best treatment of heterotopic cervical pregnancies for a successful pregnancy outcome? Clin Exp Reprod Med. 2012;39:187–92.

  232. 232.

    Yeh J, Aziz N, Chueh J. Nonsurgical management of heterotopic abdominal pregnancy. Obstet Gynecol. 2013;121:489–95.

  233. 233.

    Kamath MS, Aleyamma TK, Muthukumar K, Kumar RM, George K. A rare case report: ovarian heterotopic pregnancy after in vitro fertilization. Fertil Steril. 2010;94:1910.

  234. 234.

    Allison JL, Aubuchon M, Leasure JD, Schust DJ. Hyperosmolar glucose injection for the treatment of heterotopic ovarian pregnancy. Obstet Gynecol. 2012;120:449–52.

  235. 235.

    Skjeldestad FE, Hadgu A, Eriksson N. Epidemiology of repeat ectopic pregnancy: a population-based prospective cohort study. Obstet Gynecol. 1998;91:129–35.

  236. 236.

    Siow A, Ng S. Laparoscopic management of 4 cases of recurrent cornual ectopic pregnancy and review of literature. J Minim Invasive Gynecol. 2011;18:296–302.

  237. 237.

    Weissman A, Fishman A. Uterine rupture following conservative surgery for interstitial pregnancy. Eur J Obstet Gynecol Reprod Biol. 1992;44:237–9.

  238. 238.

    Downey GP, Tuck SM. Spontaneous uterine rupture during subsequent pregnancy following non-excision of an interstitial ectopic gestation. Br J Obstet Gynaecol. 1994;101:162–3.

  239. 239.

    Yamaguchi M, Honda R, Uchino K, Tashiro H, Ohba T, Katabuchi H. Transvaginal methotrexate injection for the treatment of cesarean scar pregnancy: efficacy and subsequent fecundity. J Minim Invasive Gynecol. 2014;21:877–83.

  240. 240.

    Maymon R, Svirsky R, Smorgick N, Mendlovic S, Halperin R, Gilad K, et al. Fertility performance and obstetric outcomes among women with previous cesarean scar pregnancy. J Ultrasound Med. 2011;30:1179–84.

  241. 241.

    Qian ZD, Guo QY, Huang LL. Identifying risk factors for recurrent cesarean scar pregnancy: a case–control study. Fertil Steril. 2014;102:129–34.

Download references

Author information

Correspondence to Danielle M. Panelli.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

DP and PB participated in the planning and drafting of the manuscript. CP selected and edited the radiologic imaging. All authors read and approved the final manuscript.

Authors’ information

Danielle Panelli is a resident in the Brigham and Women’s Hospital/Massachusetts General Hospital Integrated Residency Program in Obstetrics and Gynecology, an affiliate of the Harvard Medical School.

Catherine Phillips is the chief resident at the Brigham and Women’s Hospital Diagnostic Radiology Residency Program, an affiliate of Harvard Medical School.

Paula Brady is a resident in the Brigham and Women’s Hospital/Massachusetts General Hospital Integrated Residency Program in Obstetrics and Gynecology, an affiliate of the Harvard Medical School.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Panelli, D.M., Phillips, C.H. & Brady, P.C. Incidence, diagnosis and management of tubal and nontubal ectopic pregnancies: a review. Fertil Res and Pract 1, 15 (2015) doi:10.1186/s40738-015-0008-z

Download citation

Keywords

  • Ectopic pregnancy
  • Nontubal ectopic pregnancy
  • Heterotopic pregnancy
